Fig. 3: Molecular structures of the coacervate systems and porous membranes.
From: Coacervate-pore complexes for selective molecular transport and dynamic reconfiguration

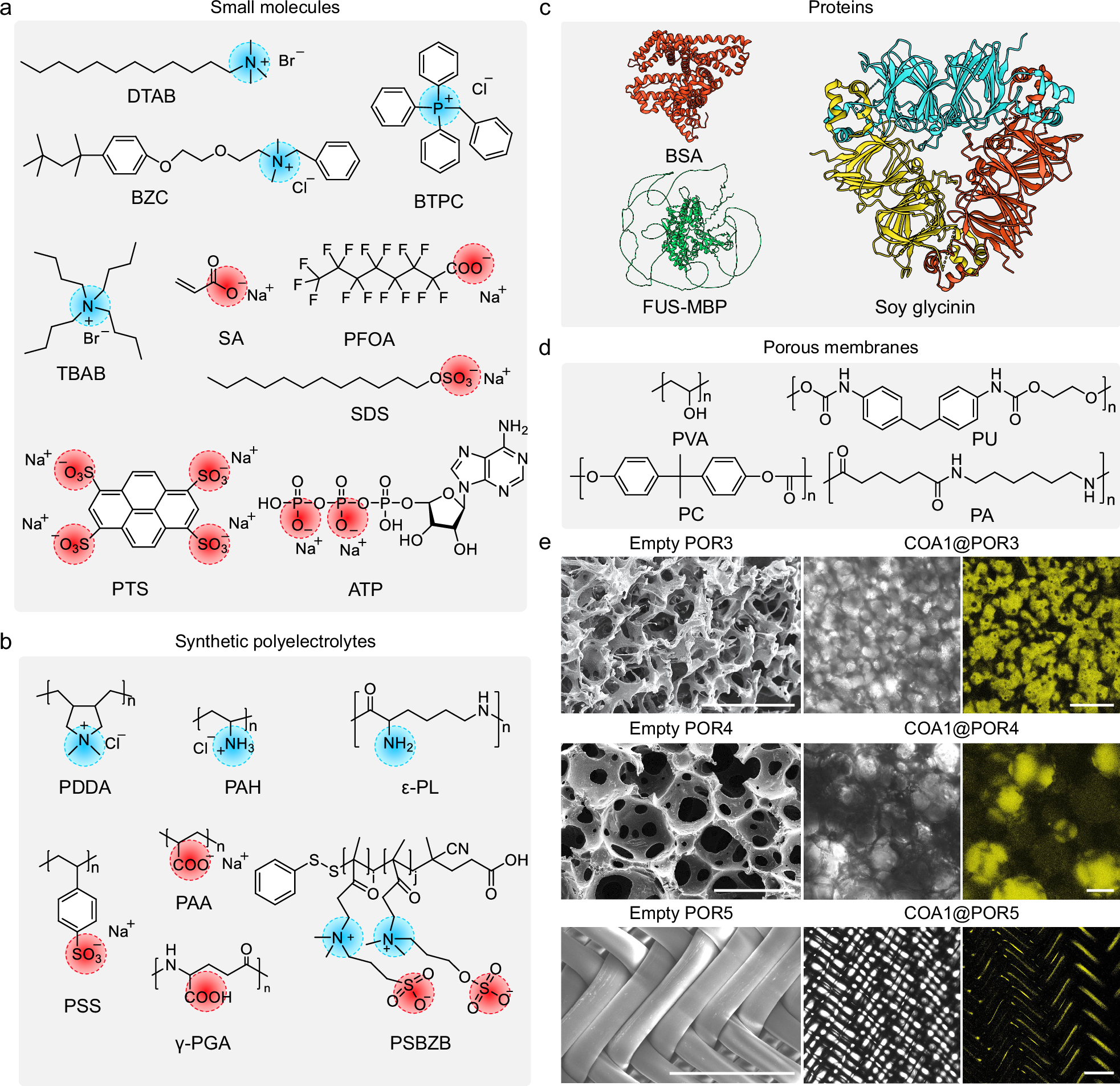

Molecular structures of the coacervate constituents (a–c) and the membranes (d), where the positive and negative charges are highlighted by blue and red circles, respectively. The structure of FUS-MBP is generated by AlphaFold2, whose prediction on the intrinsically disordered region (IDR) may not be accurate. e SEM pictures of bare pores (POR3 to POR5) and optical images of the pores loaded with COA1 in the transmission and fluorescent channels, where COA1 is mixed with 5 μM RhB. Scale bars = 50 μm.
