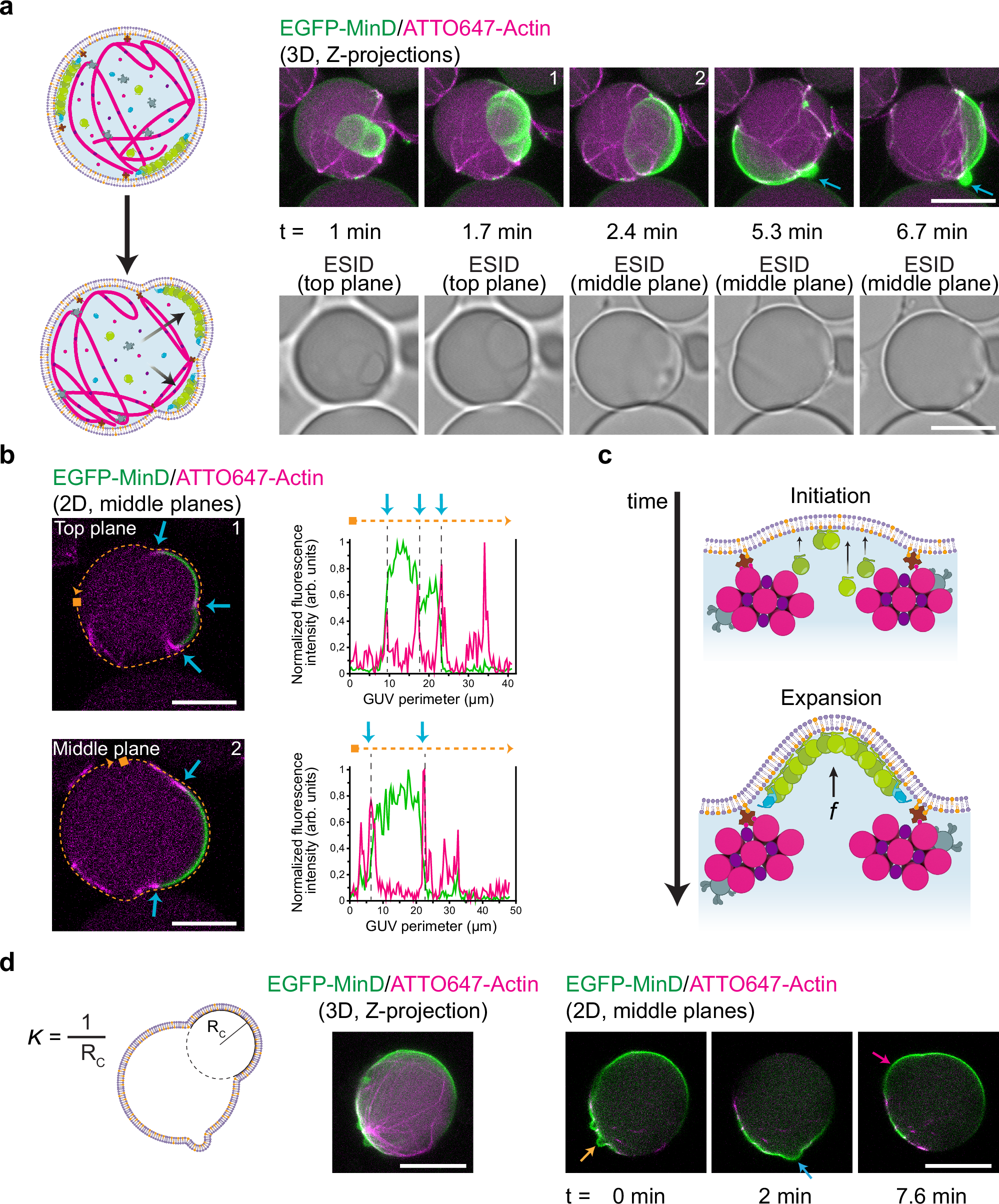

Fig. 3: MinDE-induced blebbing in vesicles containing reconstituted actomyosin architectures.

a Schematic illustration depicting the change in vesicle shape due to MinDE chaotic oscillations. Min proteins attach to areas delimited by soft actomyosin bundles and deform the membrane generating dynamic bleb-like protrusions. Fluorescence and brightfield confocal time-series show a blebbing vesicle. After bleb retraction, the reduction in bilayer tension generates an outward lipid bud (blue arrows). Encapsulation conditions: 2.4 µM actin, 0.6 µM fascin, 0.05 µM myosin II, 50 g/L Ficoll70, 3 µM MinD, 3 µM MinE and 5 mM ATP. Scale bars: 10 µm. b Confocal cross-section images at two time points of the vesicle in section a. Peripheral actomyosin anchoring creates a delimiting area which deforms upon MinDE binding. Additionally, MinDE diffusiophoretic transport changes the position of actomyosin bundles and the shape of the membrane area available for Min protein recruitment (blue arrows). Fluorescence intensity line plots of EGFP-MinD (green) and ATTO647-actin (magenta) demonstrate the demixing of both protein systems at the membrane perimeter (orange dotted line). Scale bars: 10 µm. c Schematic illustration of the proposed mechanism behind MinDE-induced blebbing. The recruitment of MinDE proteins to the compartmentalized inner leaflet of the bilayer generates the effect of a membrane outward protrusion in bleb form. d Schematic illustration depicting the radius of curvature R_C used to calculate the curvature (Κ = 1/R_C) of the blebs. 3D projection and 2D time-lapse confocal images show a vesicle with diverse bleb-like deformations emerging over time. Orange arrow points at a bleb with Κ = 0.73 µm⁻¹. Blue arrow, Κ = 0.27 µm⁻¹. Magenta arrow, Κ = 0.10 µm⁻¹. Encapsulation mix: 4 µM actin, 2 µM fascin, 0.05 µM myosin II, 50 g/L Ficoll70, 3 µM MinD, 3 µM MinE and 5 mM ATP. Scale bars: 20 µm. Source data are provided as a Source Data file.
