Fig. 1: Schematic illustration of using high-spin polymers for on-site biosignal amplification.
From: On-site biosignal amplification using a single high-spin conjugated polymer

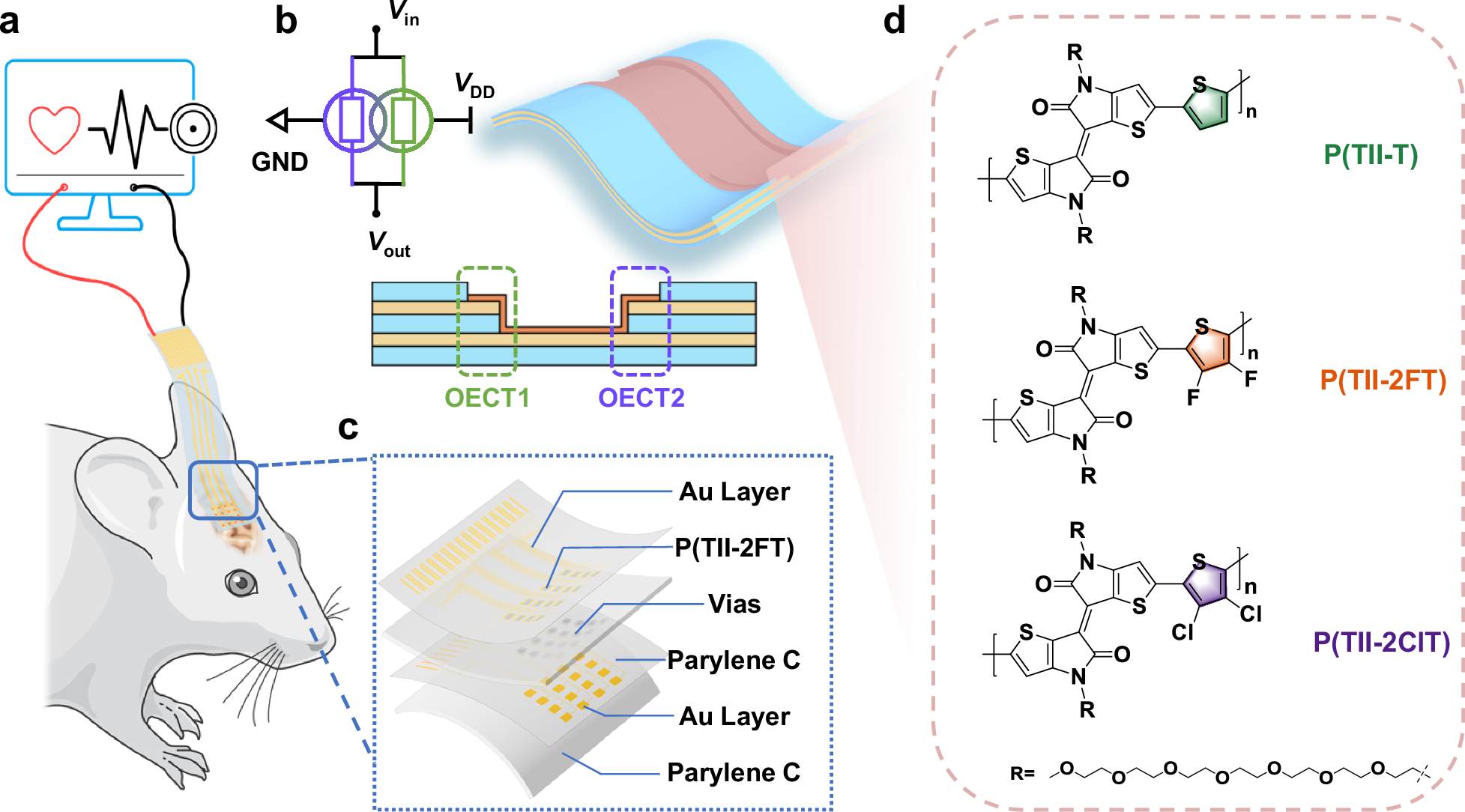

a Schematic illustration of a flexible OECT sensor matrix for capturing and amplifying mouse electrocorticogram (ECoG). b Diagram of the compact signal amplifier based on a cofacial vertical OECT pair and the corresponding circuit diagram. c The layered device configuration of our device. d Chemical structures of the three high-spin polymers, P(TII-T), P(TII-2FT), and P(TII-2ClT) used for this study. Panel a was partly generated using Servier Medical Art under a Creative Commons Attribution 3.0 unported license.
