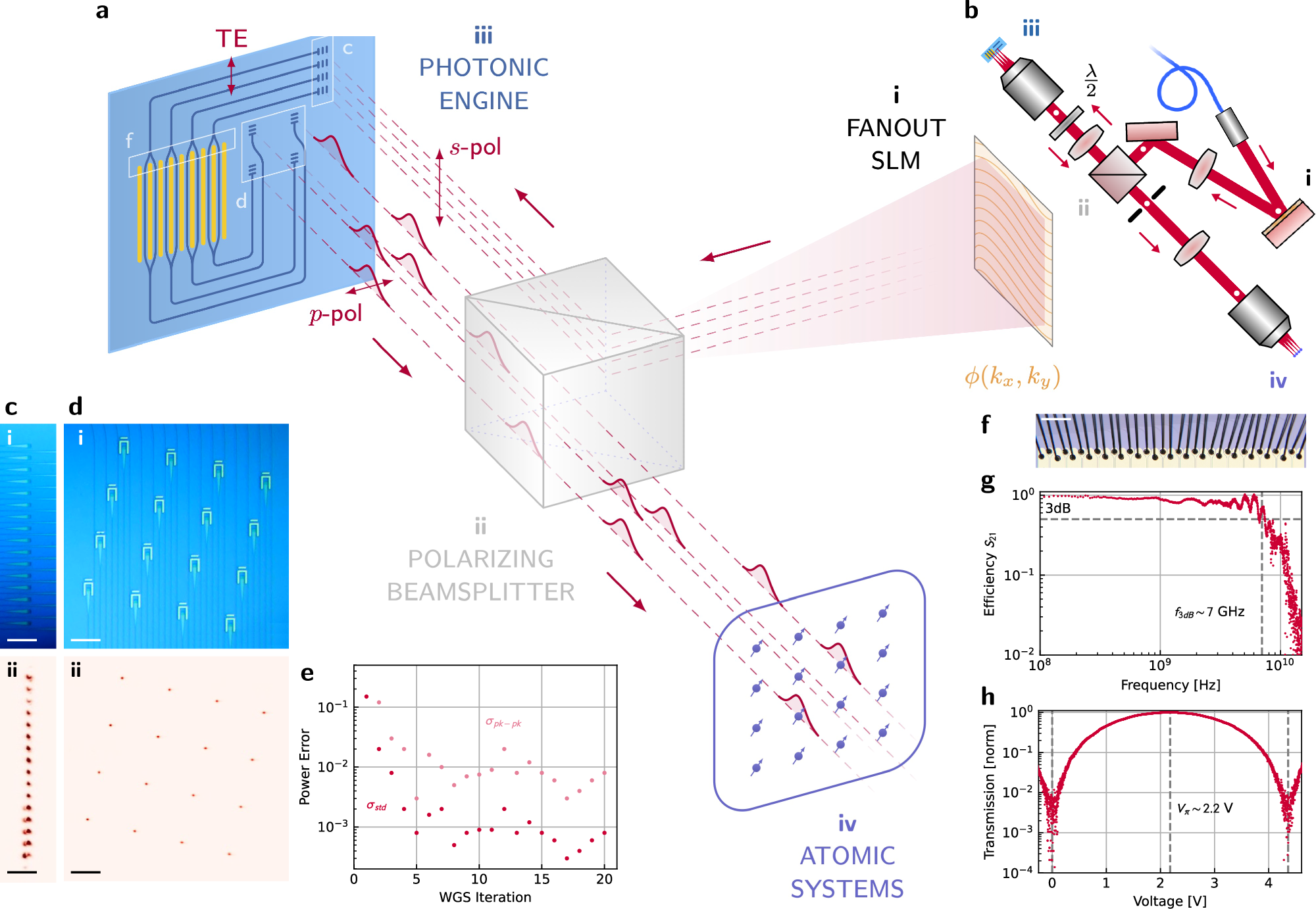

Fig. 2: Architecture, optical fanout, and modulator performance.
From: An integrated photonic engine for programmable atomic control
