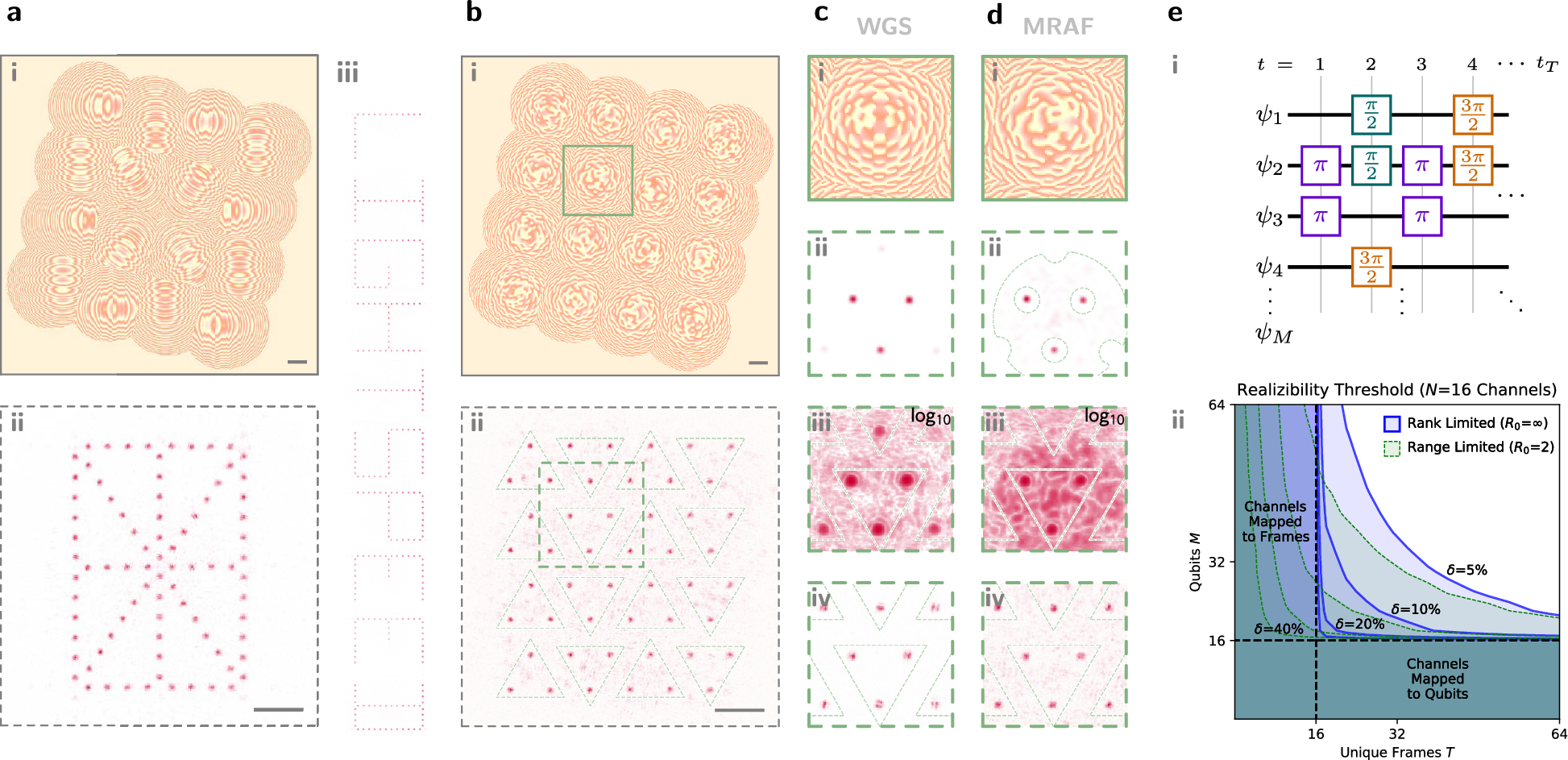

Fig. 5: Beamshaping optical channels to target topologies.
From: An integrated photonic engine for programmable atomic control
