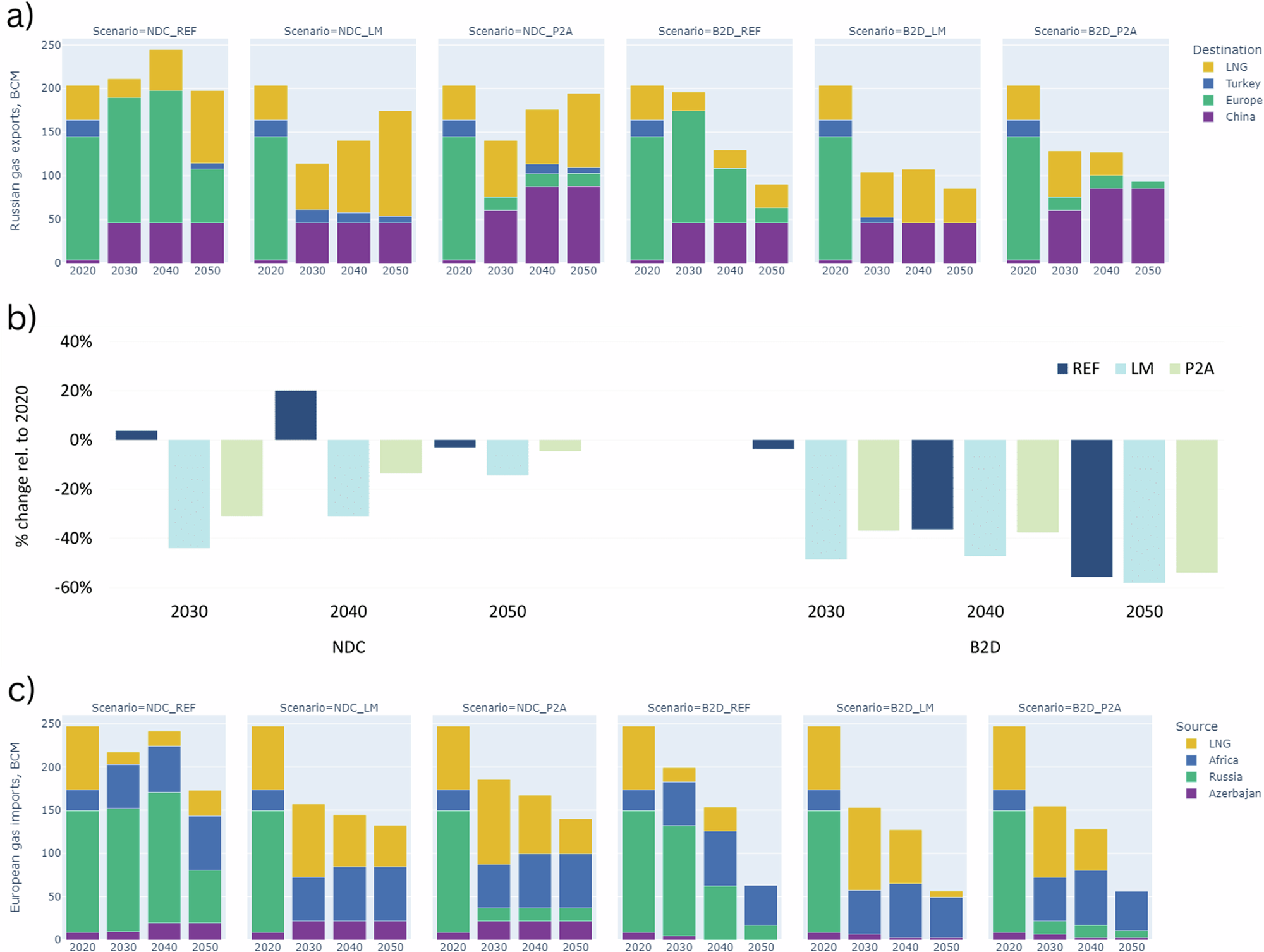

Fig. 4: Russian gas exports and European gas imports by scenario, 2020–2050.
From: The global implications of a Russian gas pivot to Asia
a provides information on Russian pipeline exports by destination plus LNG exports. b shows the relative percentage change in total Russian export levels relative to 2020. c provides information on European pipeline imports by region of origin plus imports via LNG routes. The first part of the scenario label denotes the climate policy ambition, NDC or B2D. The second part of the label denotes the geopolitical scenario, LM or P2A. The counterfactual for both LM and P2A only has the climate policy ambition level in its label. Note that European refers to continental Europe, so excludes the UK. Data for (a) and (b) can be found in SI Table 4, and for (c) in SI Table 5, and in the file supplementary data 1.
