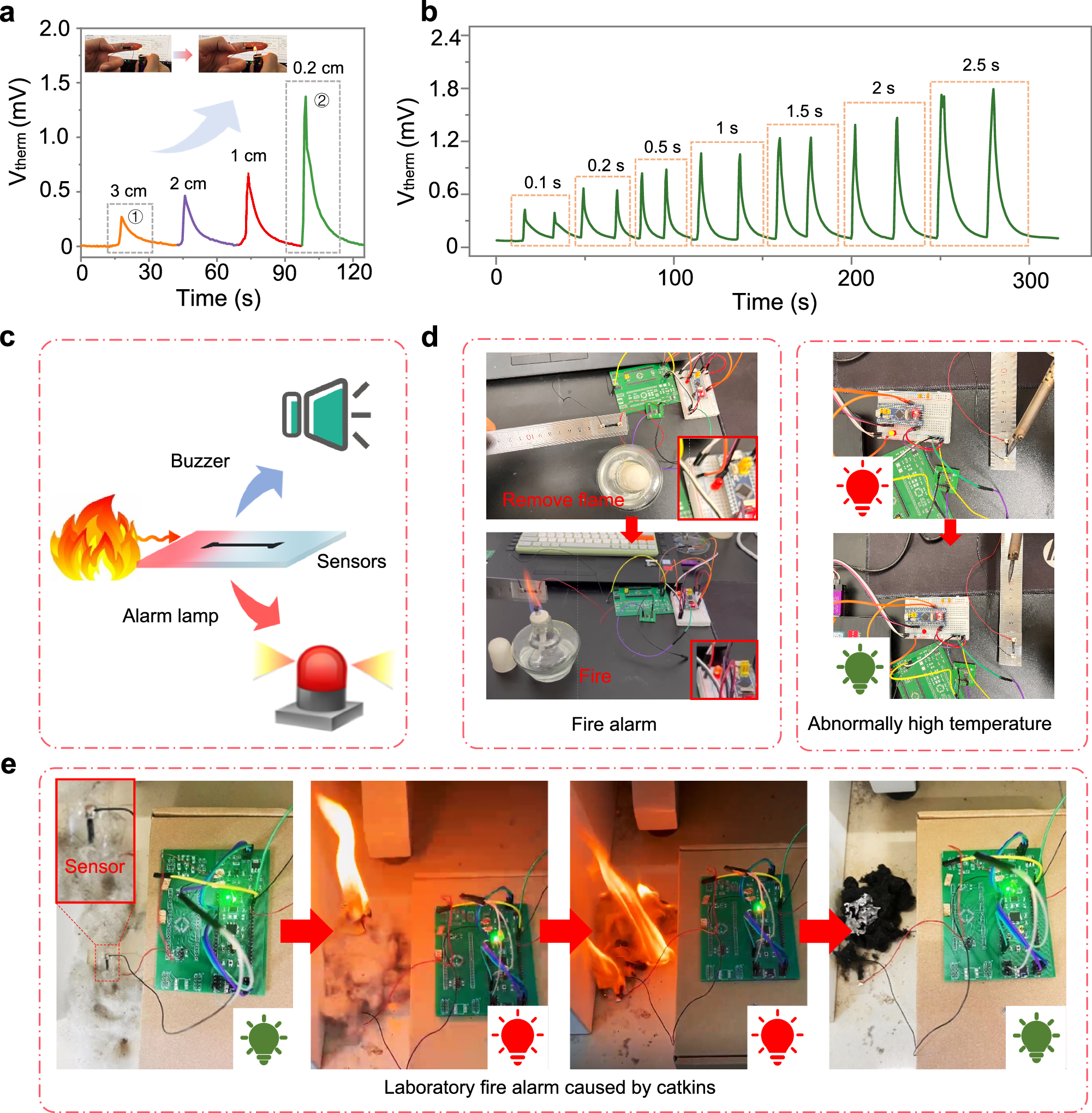

Fig. 6: A smart fire alarm system based on thermoelectric nanocomposites.

Detection of the fire source (a) positioned at different positions (3–0.2 cm) and (b) with different durations (0.1–2.5 s). c Schematic showing the structure of the fire alarm system and its demonstration to detect (d) fire and high temperature, as well as simulated (e) laboratory fires.
