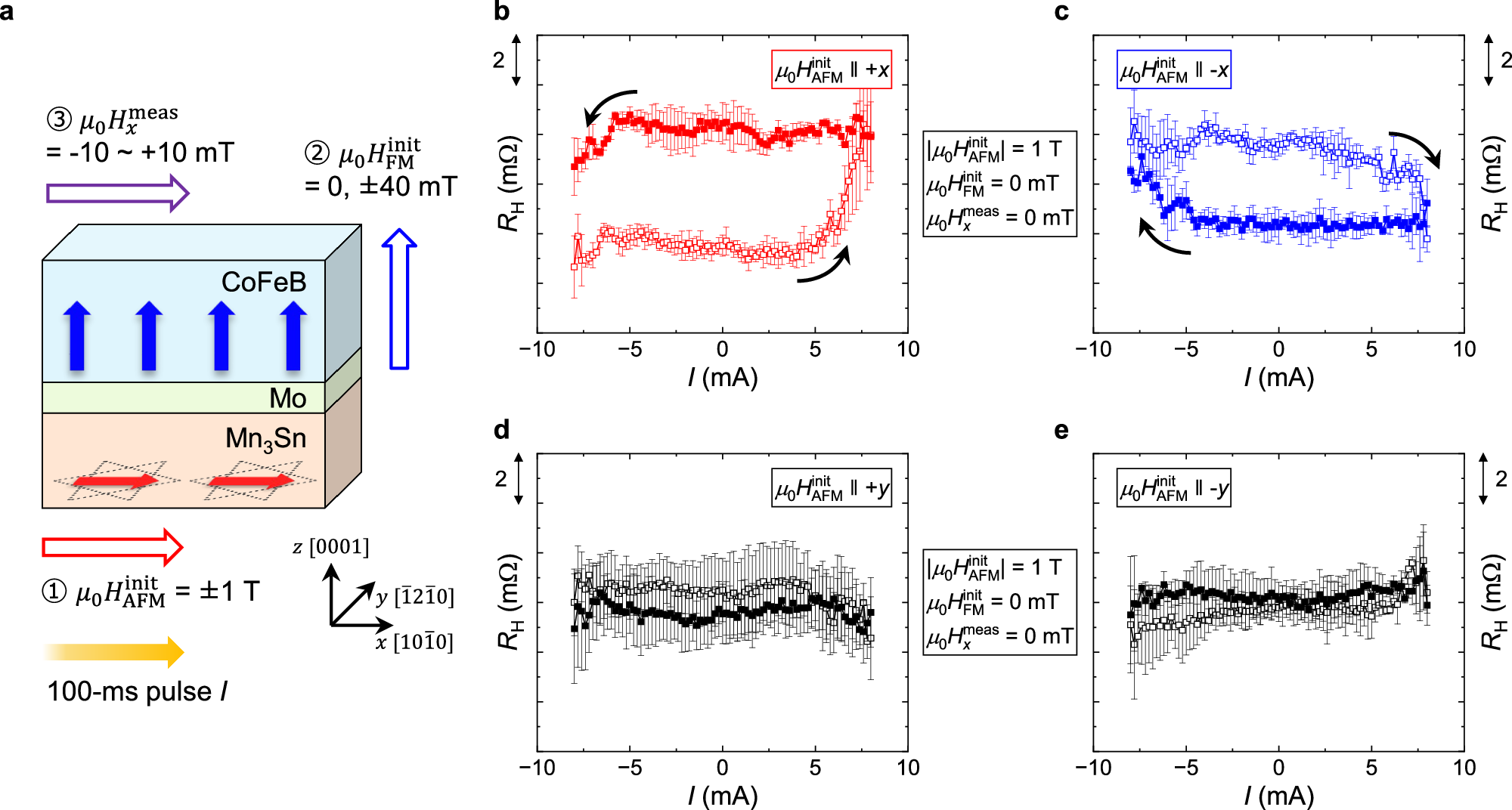

Fig. 2: Switching of CoFeB by the MSHT of Mn3Sn.
From: Electrical mutual switching in a noncollinear-antiferromagnetic–ferromagnetic heterostructure
a Sequence of the switching measurements. \({H}_{{{\rm{AFM}}}}^{{{\rm{init}}}}\), \({H}_{{{\rm{FM}}}}^{{{\rm{init}}}}\), and \({H}_{x}^{{{\rm{meas}}}}\) are the AFM initialization field, FM initialization field, and the field applied during the measurement, respectively. 100-ms pulse current is applied to induce the switching. Field-free switching of CoFeB. The magnetic spin source Mn3Sn is initialized by a magnetic field of 1 T along (b) +x, (c) –x, (d) +y, and (e) –y directions, respectively. Open (closed) symbols indicate the data plots during the forward (backward) scan. The error bars indicate the standard deviation errors in three continuous rounds of measurements.
