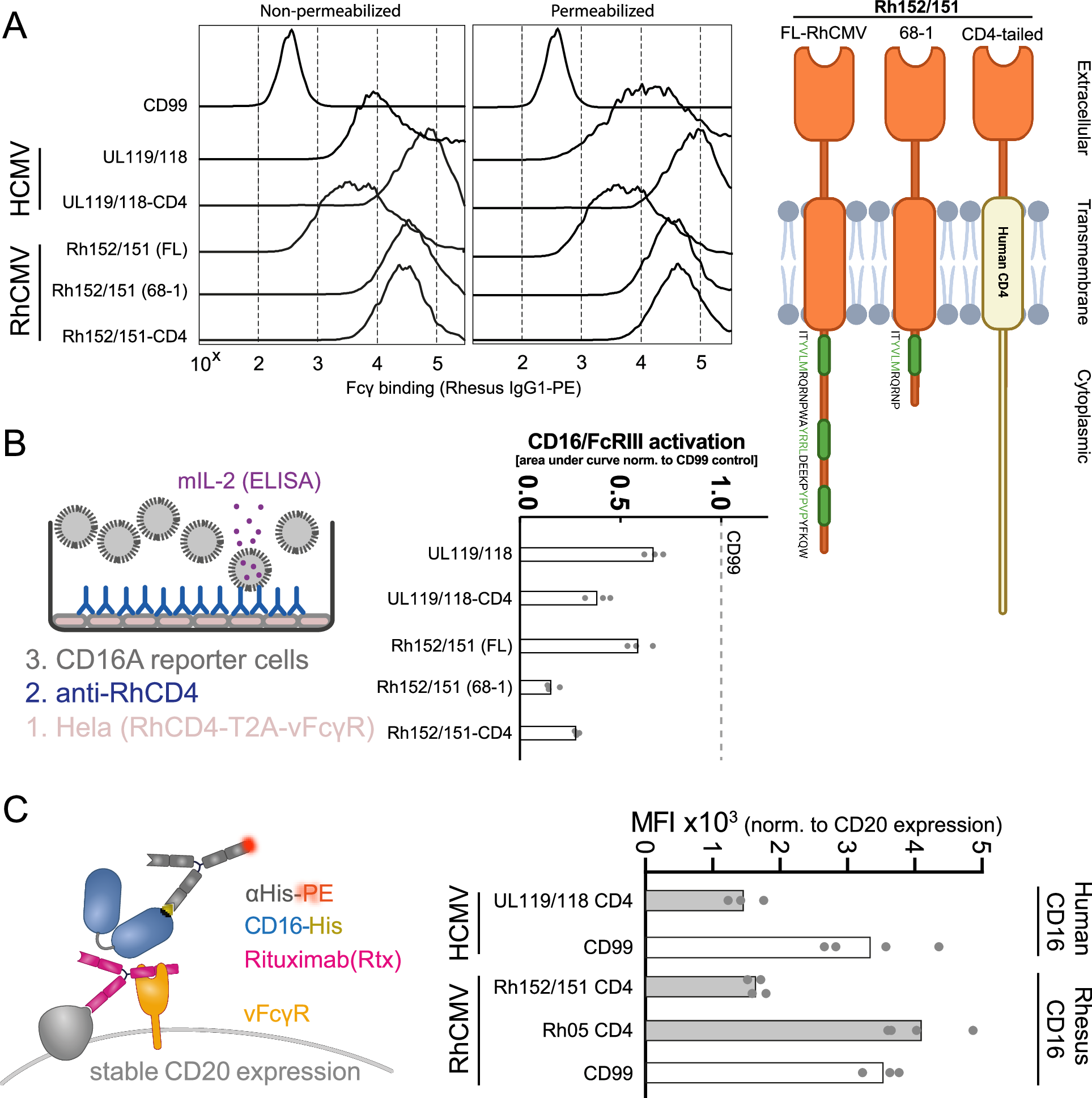

Fig. 1: Rh152/Rh151 binds IgG and antagonizes host FcγR activation by blocking receptor engagement.

A 293 T cells were transfected with a pIRES-eGFP plasmid expressing the indicated UL119/118 or Rh152/Rh151 constructs or human CD99. Cells were probed for binding of PE-conjugated rhesusized IgG1 by flow cytometry with or without permeabilization. Polycistronic GFP expression was used to gate on transfected cells. The cartoon illustrates the orientation and configuration of the Rh152/Rh151 constructs in the cellular membrane. Extracellular and cytoplasmic termini of the proteins are indicated, and the modifications to the YXXΦ sorting motifs are highlighted in green. Created in BioRender. Kolb, P. (2024) https://BioRender.com/w36j646. B HeLa cells recombinantly expressing the RhCD4 target antigen and the indicated vFcγRs in equimolar amounts from a T2A-linked fusion protein were incubated with graded amounts of RhCD4-specific rhesusized IgG1 and tested for human CD16 activation using a cell-based reporter assay³⁴. Symbols show area under curve (AUC) values from independent experiments normalized to activation in the presence of a non-Fcγ binding glycoprotein control (human CD99). Bars show the mean of independent experiments. C 293 T cells stably expressing human CD20 were transfected with the indicated vFcγRs or human CD99, incubated with the anti-CD20 antibody Rituximab, and probed for rhesus or human CD16 binding via flow cytometry. The experimental setup is shown in detail on the left. Symbols show the mean fluorescence intensity (MFI) of independent experiments normalized to CD20 expression following transfection. Bars show the mean of independent experiments. Source data are provided as a Source Data file.
