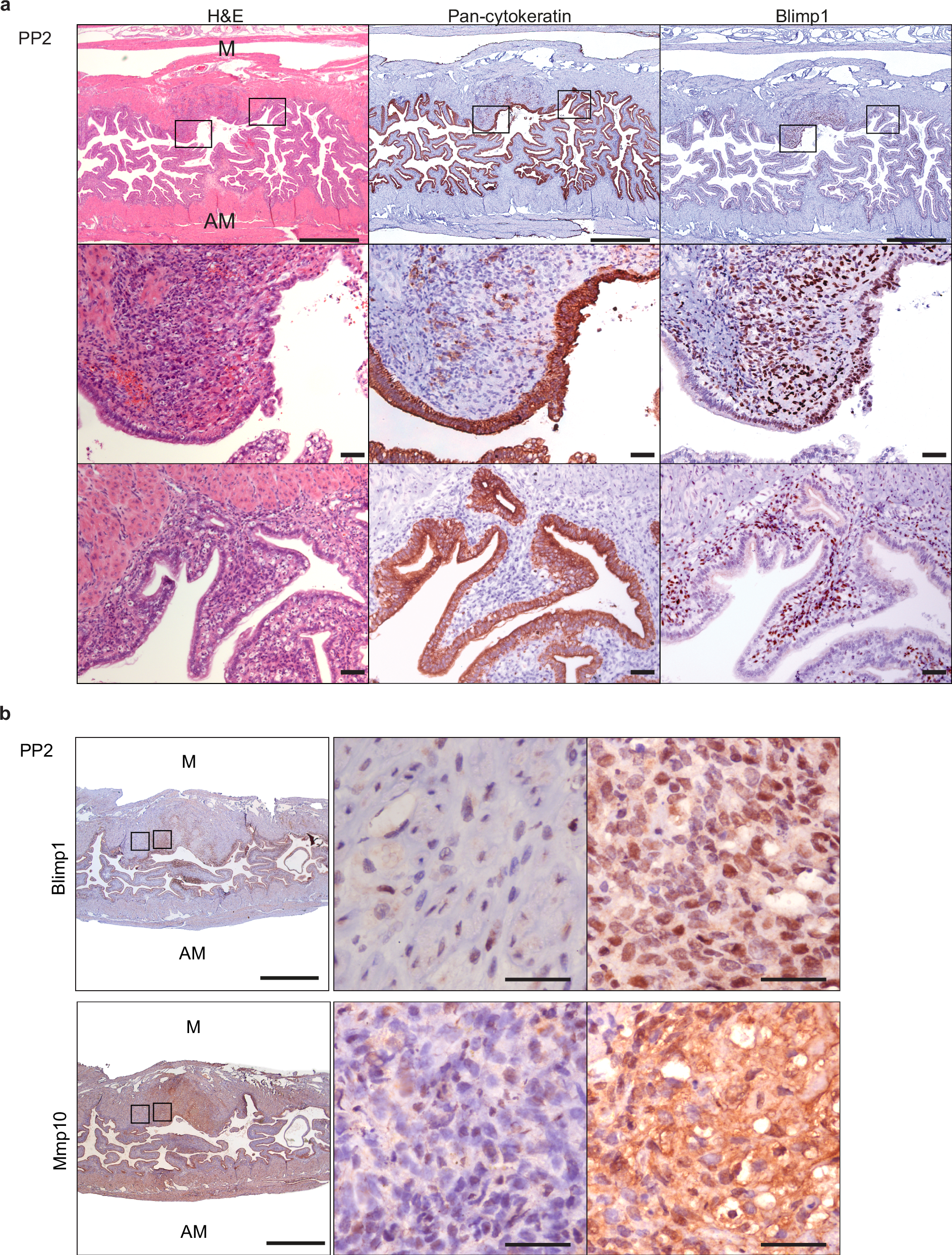

Fig. 7: Blimp1 and Mmp10 are co-expressed in wild type uteri during early post-partum regeneration.

From: The zinc-finger transcription factor Blimp1/Prdm1 is required for uterine remodelling and repair in the mouse

Fig. 7: Blimp1 and Mmp10 are co-expressed in wild type uteri during early post-partum regeneration.

a Blimp1 is expressed in stroma cells and regenerating luminal epithelium at PP2 at sites of placental detachment (n = 7). b Overlapping areas of Blimp1 and Mmp10 expression in PP2 uteri. Areas of low (mid panels) and high (right panels) Blimp1 and Mmp10 expression are displayed (n = 7). M mesometrial, AM antimesometrial. Scale bars = 1 mm, 50 μm (magnified panels).
