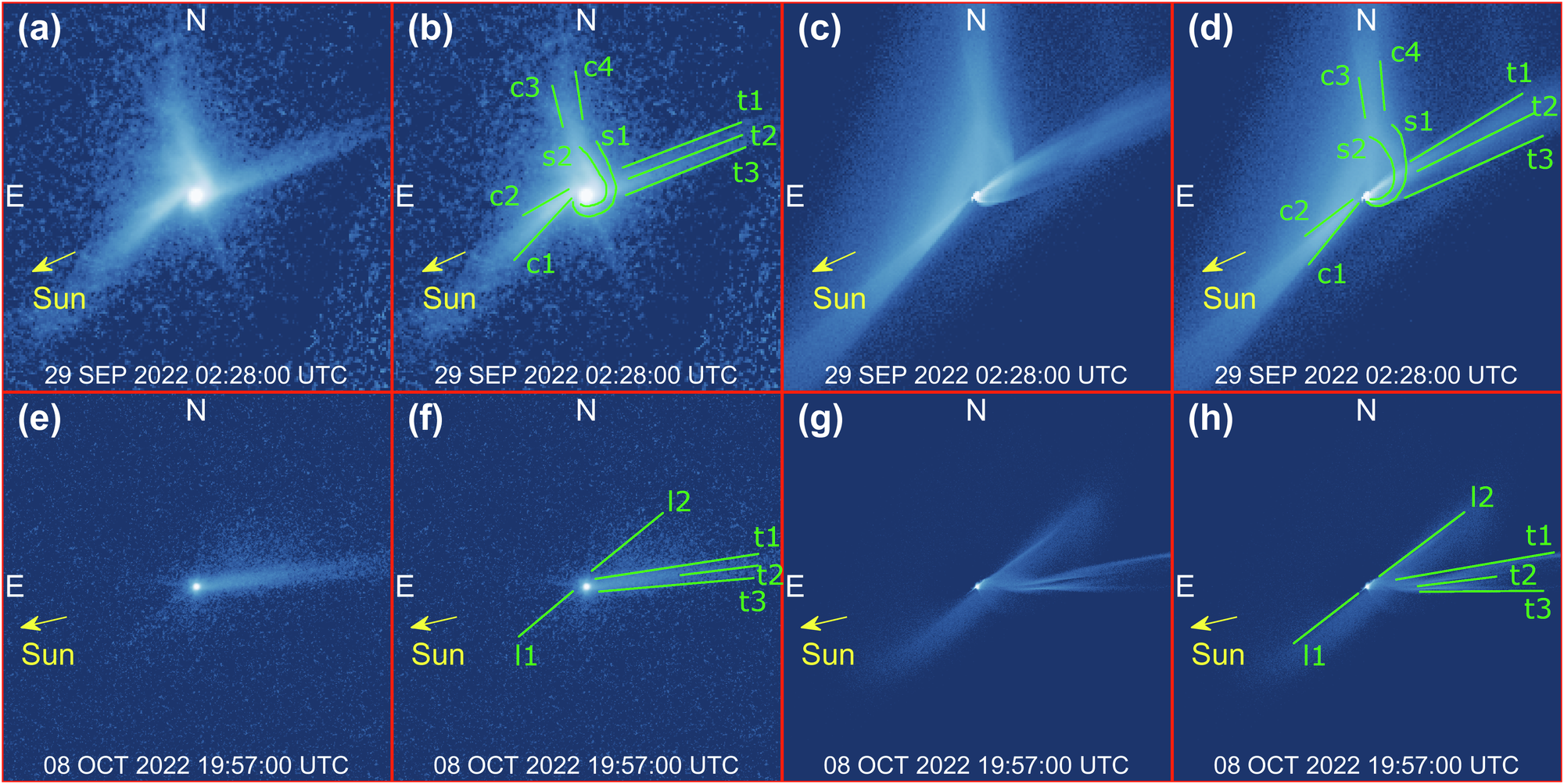

Fig. 2: Time evolution of features.
From: Morphology of ejecta features from the impact on asteroid Dimorphos
