Fig. 6: Comparison of SAXS-derived and AlphaFold-predicted pairwise distance distributions for partially disordered proteins.

From: AlphaFold prediction of structural ensembles of disordered proteins

Fig. 6

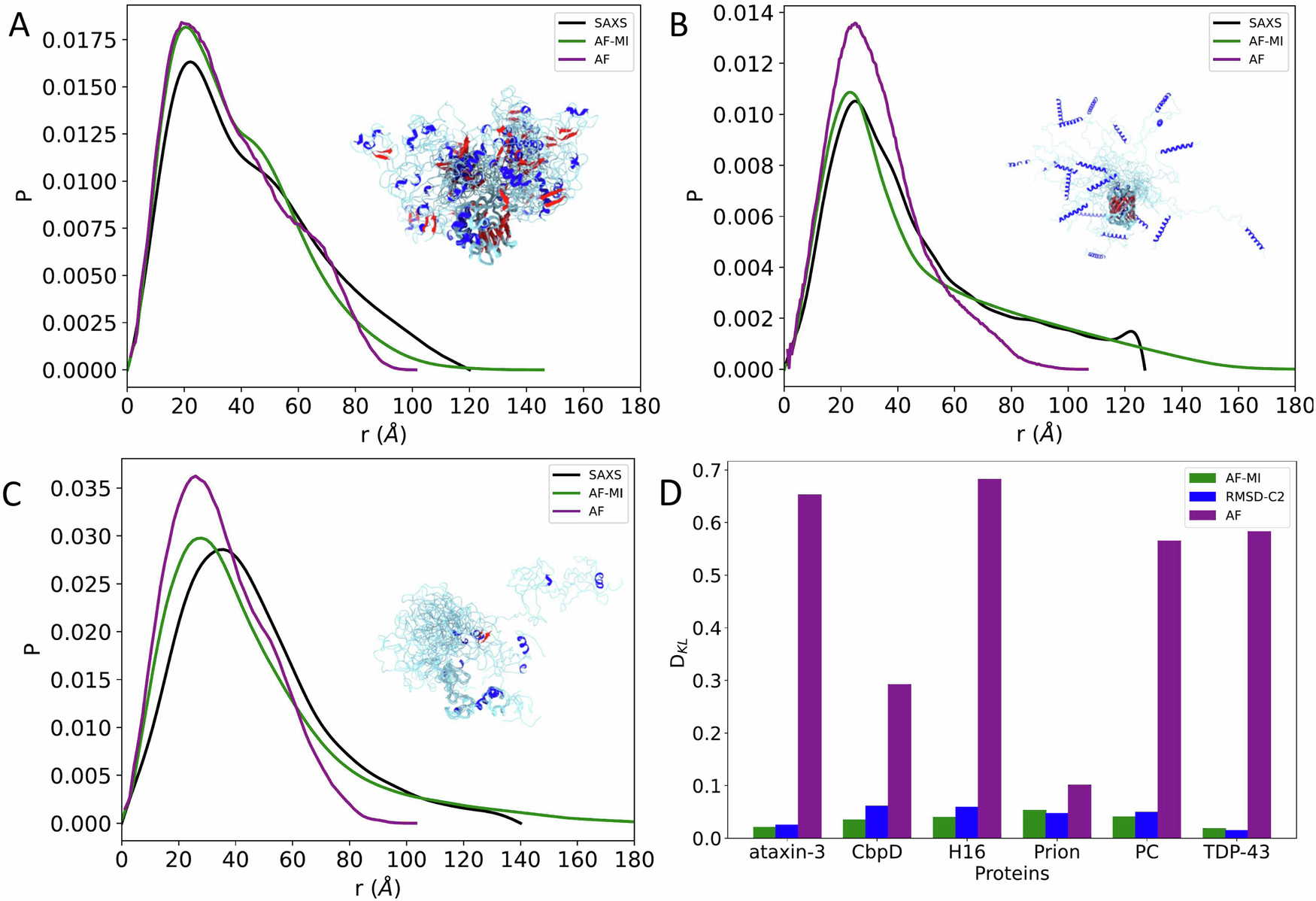

A–C Experimental pairwise distance distributions obtained by SAXS are shown in black, by AlphaFold individual structures (AF) in purple, and by AlphaFold-Metainference structural ensembles (AF-MI) in green. The proteins shown are CbpD (A), H16 (B), and PC (C). D Comparison of the Kullback–Leibler distances between AlphaFold individual structures (AF) and SAXS (purple), CALVADOS-2 with RMSD restraints (RMSD-C2) and SAXS (blue), and AlphaFold-Metainference (AF-MI) and SAXS (green) for the 6 partially disordered proteins shown in Figs. 3–6.
