Fig. 7: Longitudinal analysis for PG-TCR groups.

From: APMAT analysis reveals the association between CD8 T cell receptors, cognate antigen, and T cell phenotype and persistence

Fig. 7: Longitudinal analysis for PG-TCR groups.The alternative text for this image may have been generated using AI.

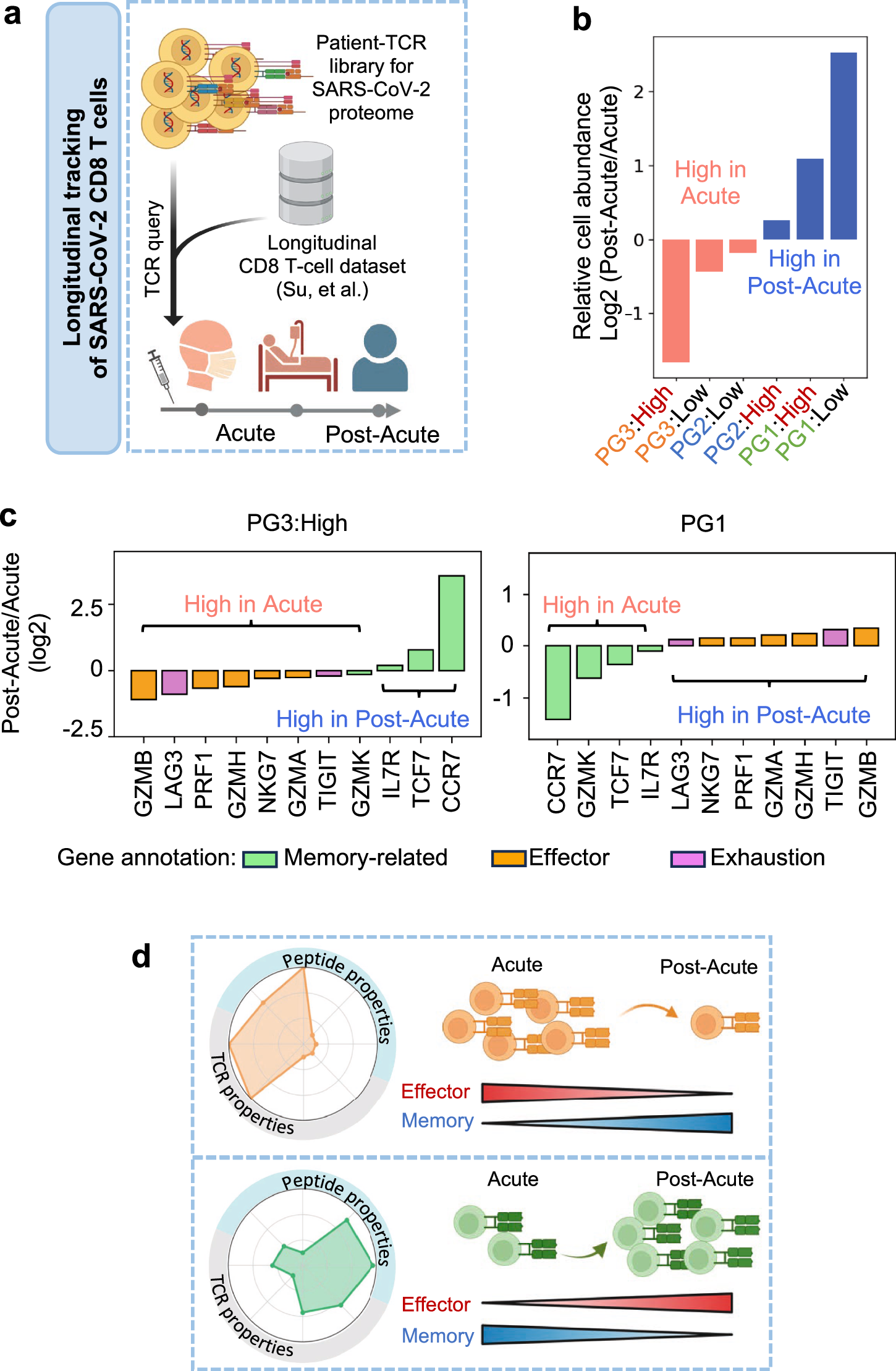

a Tracking SARS-CoV-2 CD8 T cells from acute to post-acute timepoint based on TCR-GLIPH query from a previously reported longitudinal dataset. Created in BioRender60. b Cell abundancy changes from post-acute to acute timepoint for each PG-TCR grouping. Red or blue means higher abundancy at acute or post-acute timepoint, respectively. c Selected gene expression changes from the acute to post-acute timepoints for each PG-TCR groups. Gene annotations on the bottom. d Summary: The association between distinct peptide-TCR properties and cell fates for antigen-specific CD8 T cells. Created in BioRender60.
