Fig. 3: Predictive capabilities of the multi-physical in-silico platform.

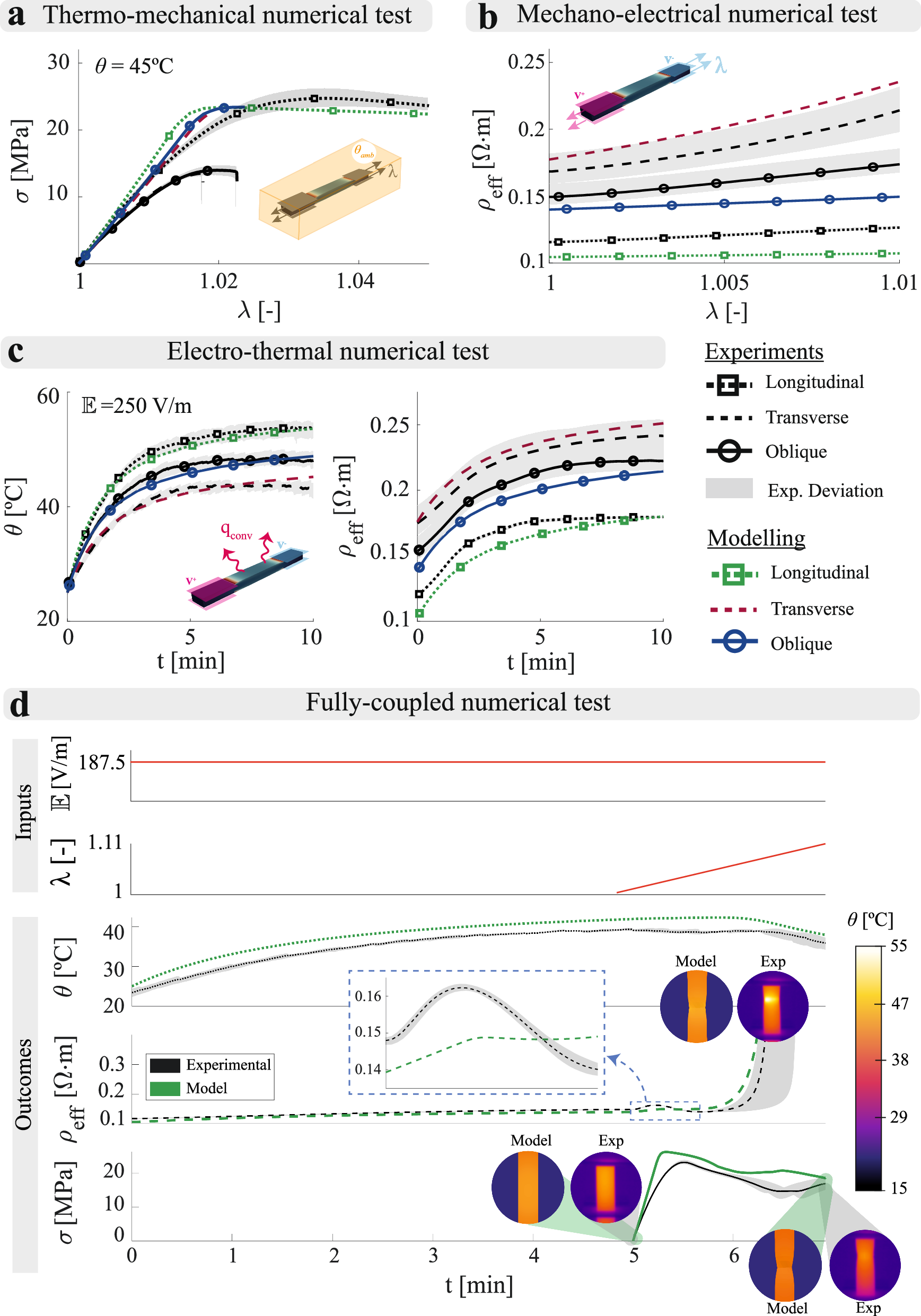

From: In-silico platform for the multifunctional design of 3D printed conductive components
