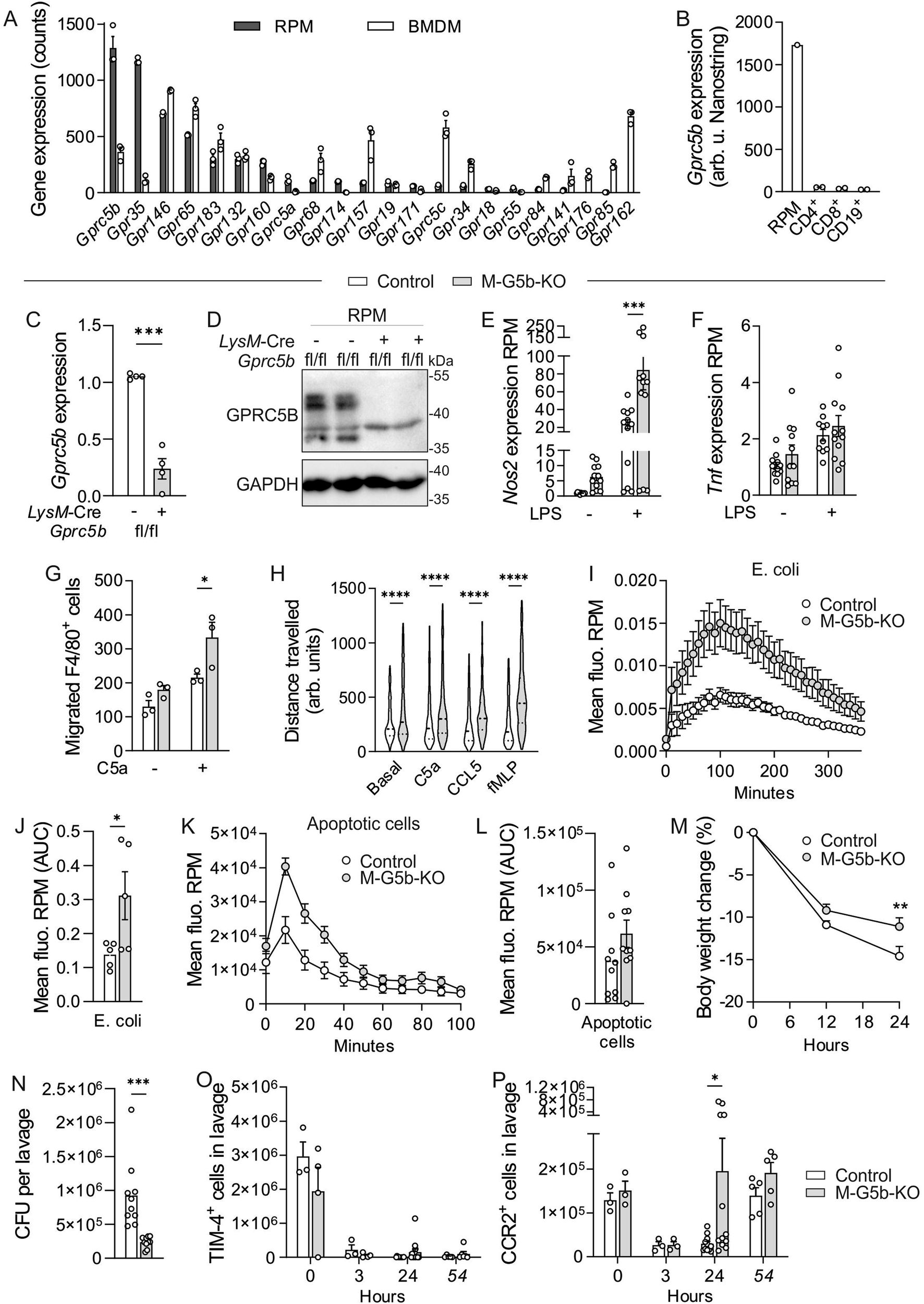

Fig. 1: Generation of myeloid-specific GPRC5B-KOs and role of GPRC5B in RPM.

A Library size-normalized counts detected by RNA sequencing in mouse RPM and in M0-differentiated BMDM (3 mice each; only GPCRs with average count >15 displayed). B Gprc5b expression in RPM and lymph node-derived lymphocytes was determined by NanoString RNA analysis (cells pooled from two mice per data point). C Knockout efficiency in RPM from control mice (white) and M-G5b-KOs (gray) was analyzed by qRT-PCR (C, n = 4, data normalized to Gapdh and controls set to 1). D Knockout efficiency in RPM was analyzed by immunoblotting (unspecific band around 38 kDa; the higher of the two specific bands probably represents glycosylated GPRC5B²¹; GAPDH as loading control). E, F Expression of Nos2 (E) and Tnf (F) was determined in RPM by qRT-PCR under basal conditions and after 6 h of stimulation with 1 µg/ml LPS (n = 11/12/12/12 in E, 12/10/11/12 in F), data normalized to Gapdh and control set to 1). G Basal and C5a (20 ng/ml)-induced transwell migration in RPM (all cells pretreated with LPS 1 µg/ml for 3 h to facilitate migration) (n = 3). H The distance travelled by individual RPM in response to different chemotactic factors (C5a, 20 nM; CCL5, 10 ng/ml; fMLP, 10 nM) was determined by live cell imaging (n = 512 cells from 2 mice per group; cells pretreated with LPS 1 µg/ml for 3 h to facilitate migration, arb. units: arbitrary units). Phagocytic activity of LPS (1 µg/ml, 6 h)-stimulated RPM was determined by uptake of pHrodo E. coli bioparticles (I, J, n = 5) or pHrodo-labeled apoptotic thymocytes (K, L n = 10); I + K show original traces, J + L statistical evaluation of areas under the curve (AUC). Body weight change (M) and bacterial colony-forming units in peritoneal lavage fluid harvested 24 h after injection of fecal bacteria (N) (n = 10). O, P Numbers of CD11b⁺, F4/80⁺, MHCII^-, Tim4⁺ RPM and CD11b⁺, F4/80^lo, MHCII⁺, CCR2⁺ BMDM before and 3, 24, and 54 h after i.p. injection of fecal bacteria (n = 3/3/3/3/11/12/5/5). Data are means ± SEM; comparisons between genotypes were performed using unpaired two-sided Student’s t-test (C, J, L, N), two-way ANOVA (E-H) or two-way RM-ANOVA (M) with Sidak’s multiple comparison test, unpaired two-sided t-test corrected for multiple testing by two-stage step-up method Benjamini, Krieger and Yekutieli (O, P). *P < 0.05; ***P < 0.001; ****P < 0.0001; n, number of individual mice. Source data are provided as a Source Data file.
