Fig. 5: Growth mechanism and structural particularity of 2D MOs.

From: Solvent-free fabrication of ultrathin two-dimensional metal oxides/sulfides in a fixed interlayer by geometric confinement

Fig. 5

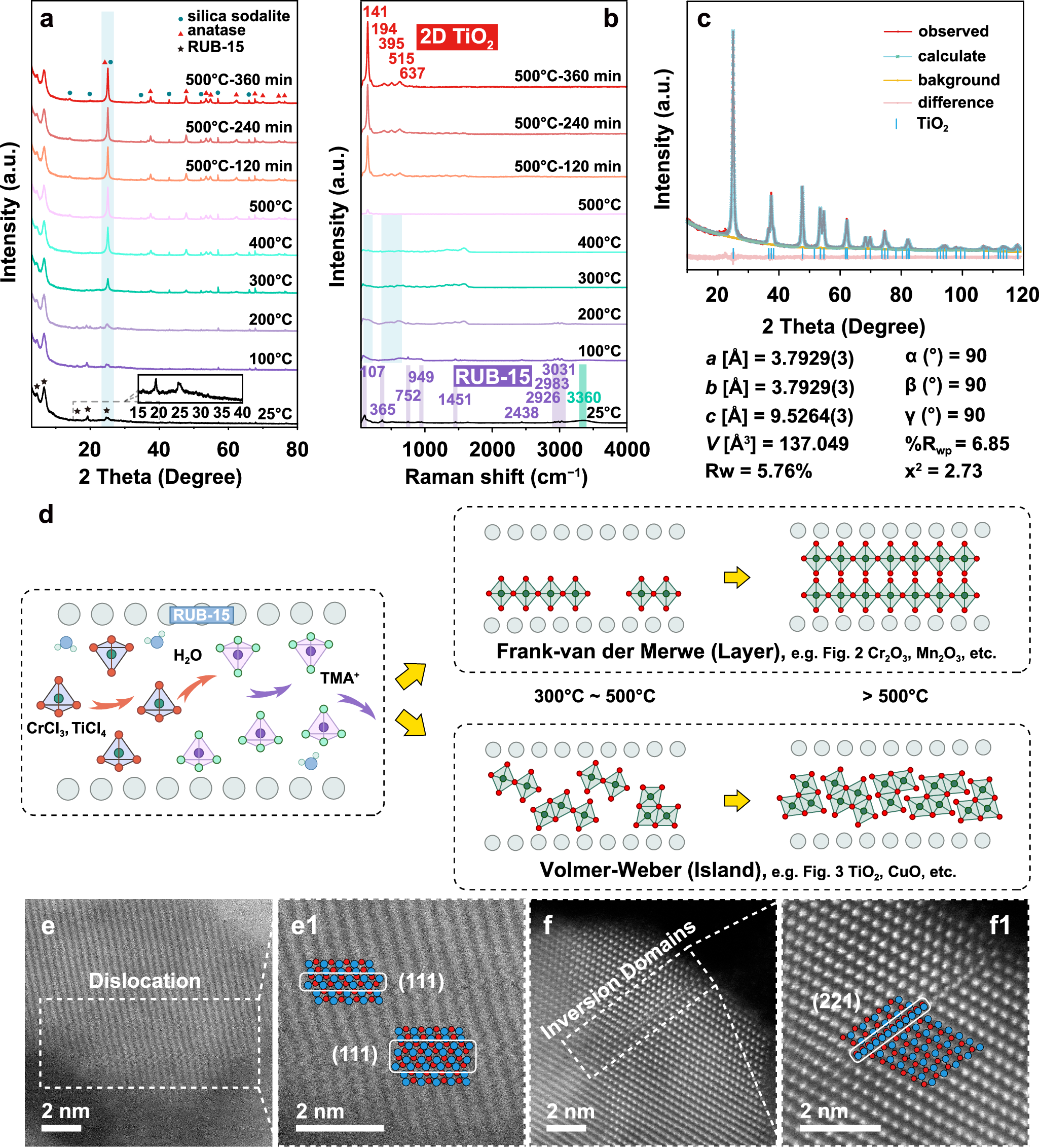

a, b In-situ XRD and in-situ Raman patterns of the confined interlayer growth process during interlamination in RUB-15. c XRD Rietveld refinement of 2D TiO2. d Growth details of ultrathin 2D MOs in a confined interlayer. e, f Stacking faults and inversion domains in the atomic-resolution STEM images of 2D TiO2.
