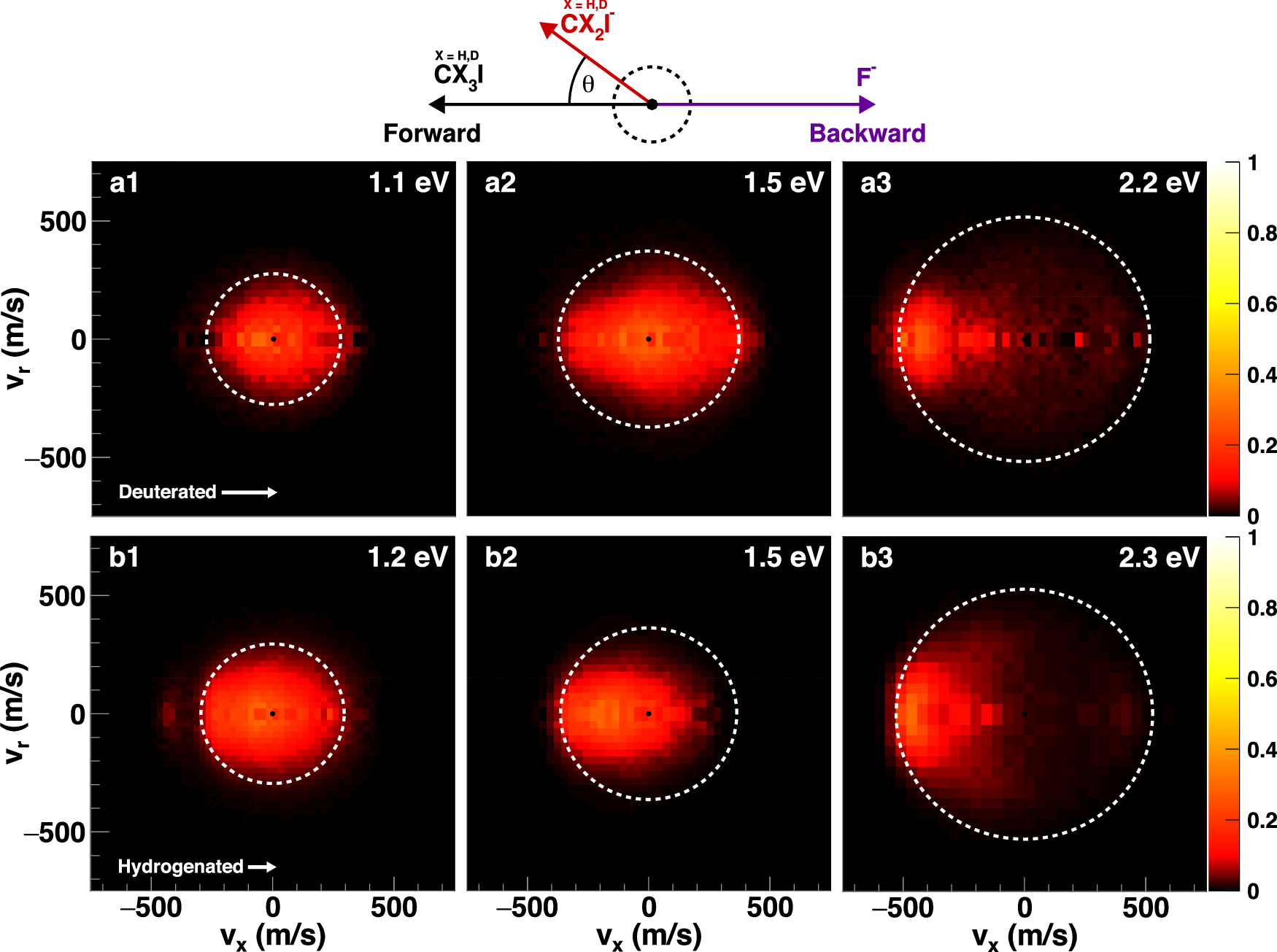

Fig. 3: Measured differential scattering cross sections for the proton (F⁻ + CH₃I) and deuteron transfer (F⁻ + CD₃I) reactions.

Row (a) depicts CD₂I⁻ products, while row (b) shows CH₂I⁻ [the data for panels b1 and b3 are replotted from ref. ⁴⁰]. The data are presented in the same manner as Fig. 1. Source data are provided as a Source Data file.
