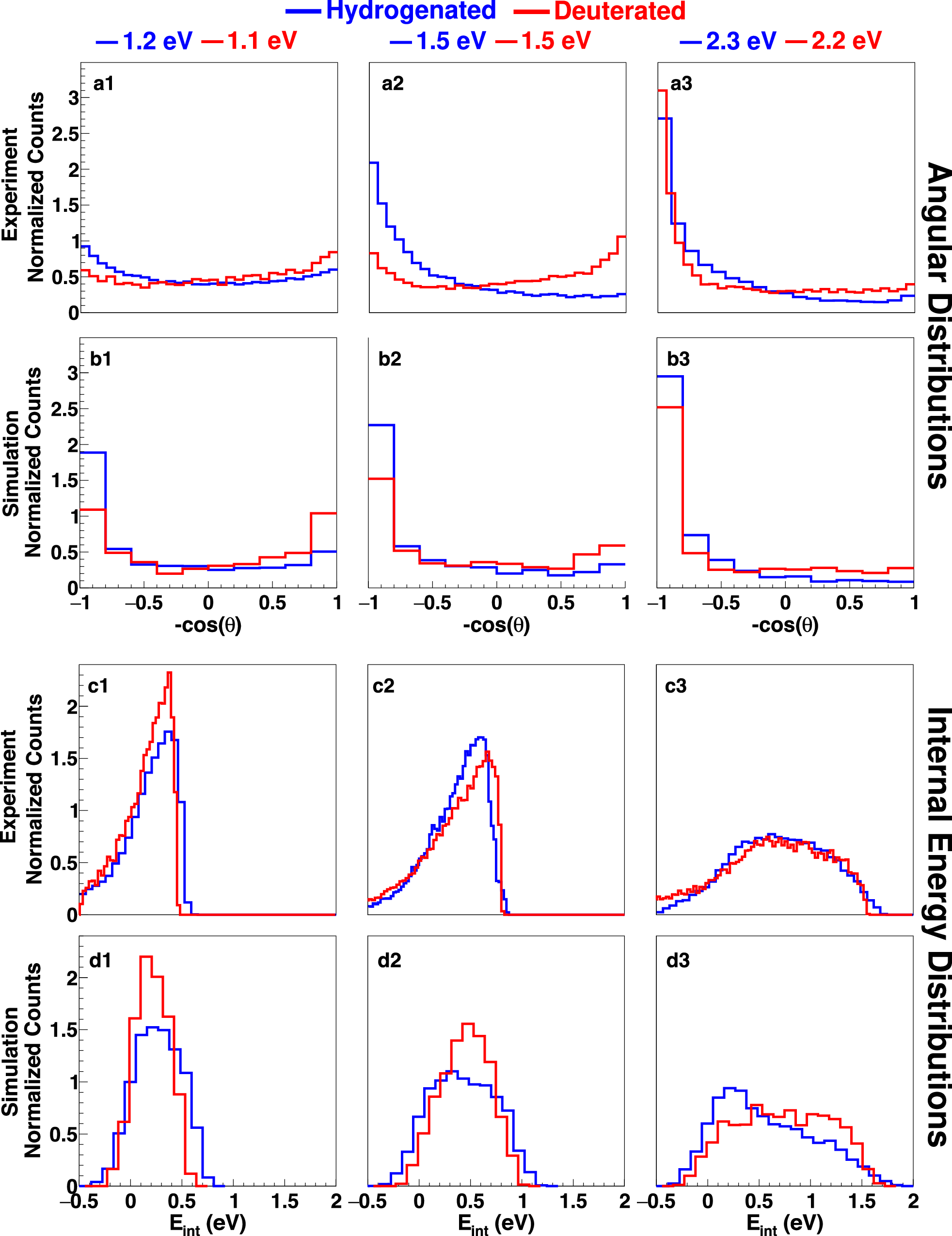

Fig. 4: Angular and internal energy distributions for the proton transfer (blue) and deuteron transfer reactions (red) at different relative collision energies.
From: A dynamic isotope effect in the nucleophilic substitution reaction between F− and CD3I
The data are presented in the same manner as Fig. 2. Row a: Velocity integrated angular distributions extracted from differential cross sections. Row b: Quasi-classical trajectory (QCT) calculations simulating the angular distribution of both proton and deuteron transfer. Row c: Derived internal energy distributions Row d: Simulated (QCT) product internal energy distributions. Source data are provided as a Source Data file.
