Fig. 3: The variation of carrier concentration and carrier mobility of SnSe-xTe and SnSe-0.75%Te-yMo. | Nature Communications

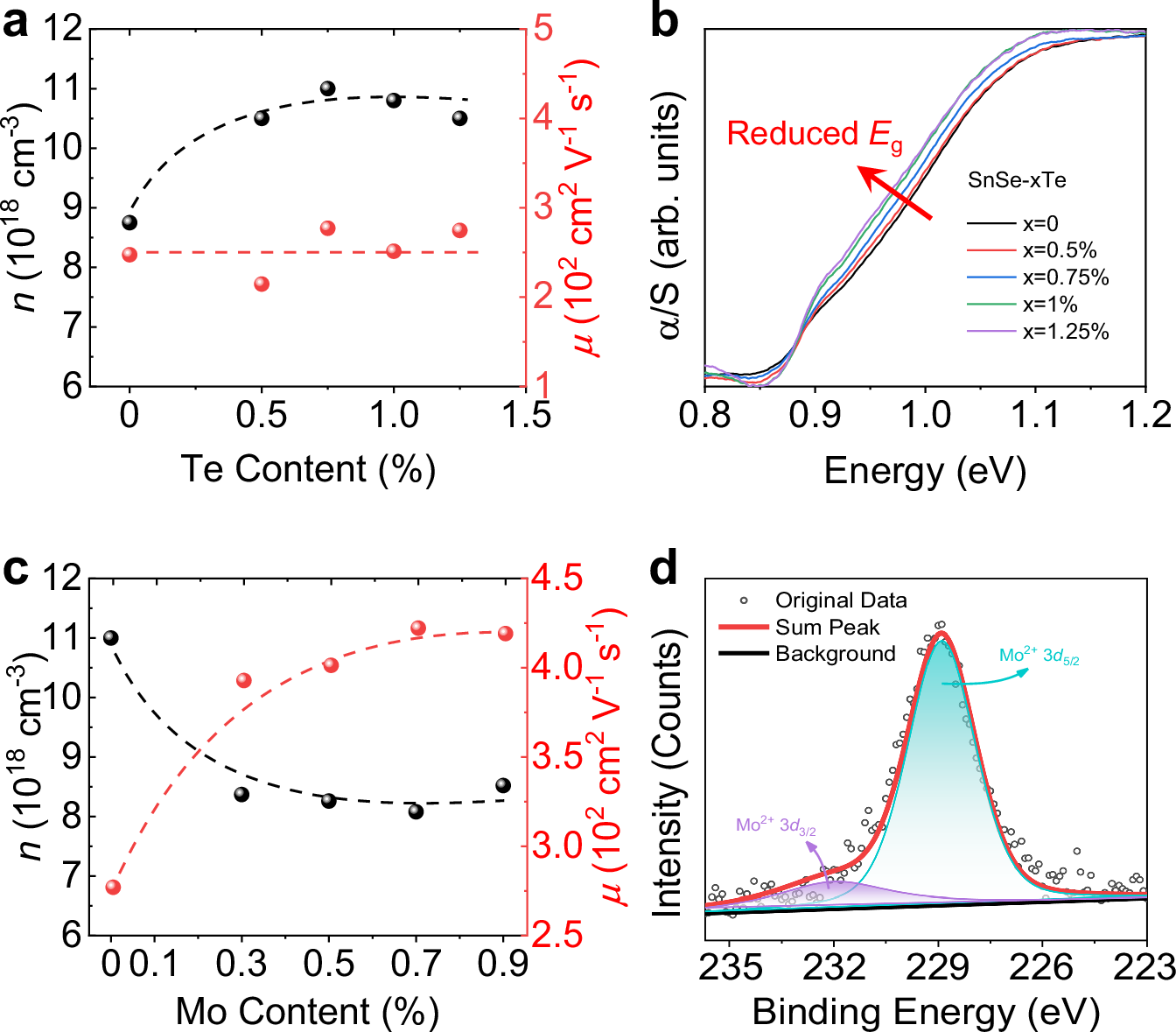

Fig. 3: The variation of carrier concentration and carrier mobility of SnSe-xTe and SnSe-0.75%Te-yMo.

From: Crystal symmetry modification enables high-ranged in-plane thermoelectric performance in n-type SnSe crystals

Fig. 3: The variation of carrier concentration and carrier mobility of SnSe-xTe and SnSe-0.75%Te-yMo.The alt text for this image may have been generated using AI.

a Carrier concentration and carrier mobility as a function of Te content. b Ultraviolet diffuse reflection spectrum. c Carrier concentration and carrier mobility as a function of Mo content. d X-ray photoelectron spectroscopy (XPS) spectra of Mo element in SnSe-0.75%Te-0.7%Mo.
