Fig. 6: Interaction between SCOF and cocatalyst.

From: Controlling crystallization in covalent organic frameworks to facilitate photocatalytic hydrogen production

Fig. 6

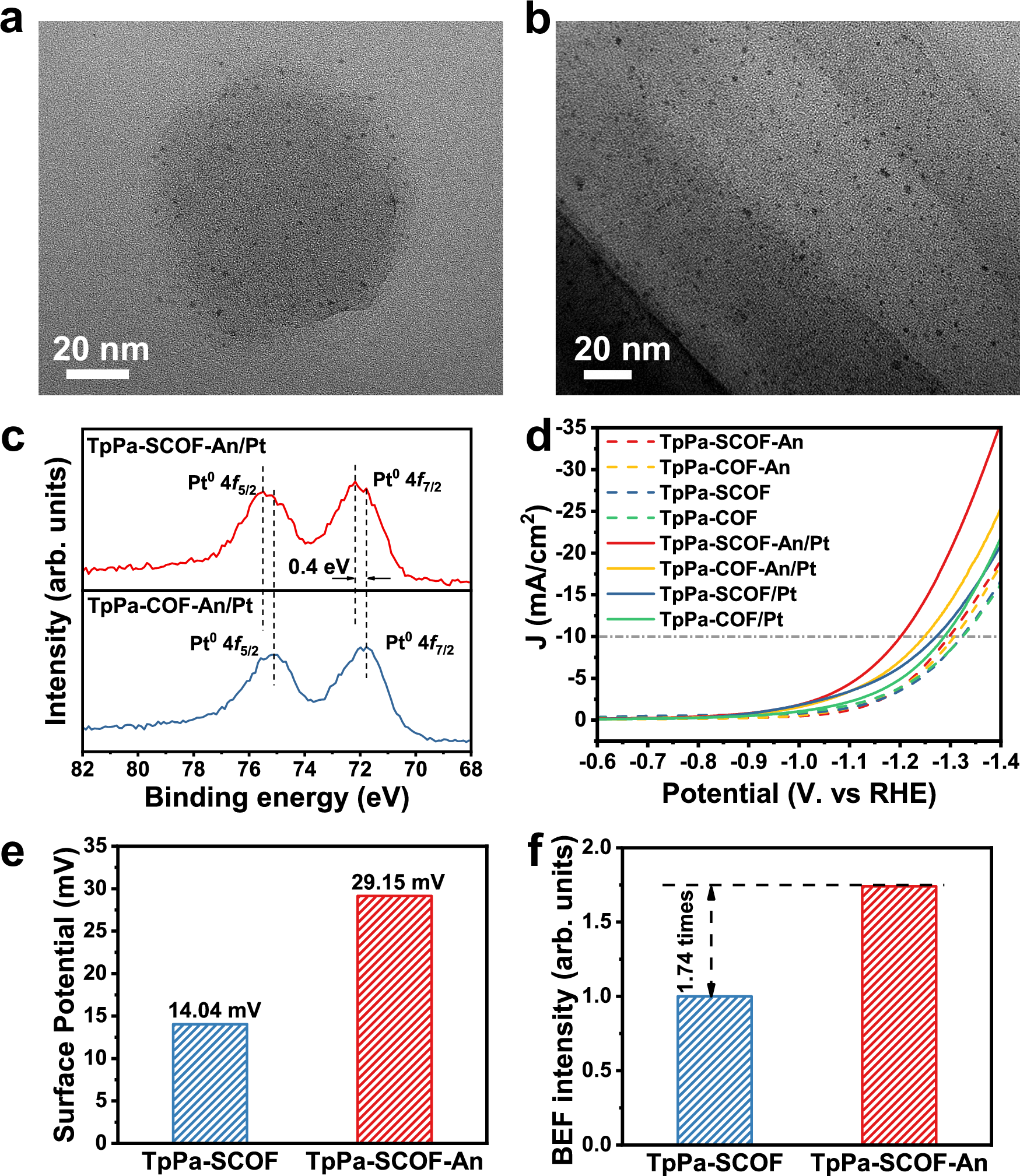

HR TEM images of (a) TpPa-SCOF-An/Pt and (b) TpPa-COF-An/Pt. c High-resolution XPS spectra of Pt 4 f for TpPa-SCOF-An/Pt and TpPa-COF-An/Pt. d LSV plots for photocatalysts before and after Pt loading. e Surface potential of TpPa-SCOF-An and TpPa-SCOF. f Calculated built-in electric field (BEF) of TpPa-SCOF-An and TpPa-SCOF. Source data are provided as a Source Data file.
