Fig. 5: Studies on thermal decomposition of salts.

From: Synthesis of high quality two dimensional covalent organic frameworks through a self-sacrificing guest strategy

Fig. 5: Studies on thermal decomposition of salts.The alternative text for this image may have been generated using AI.

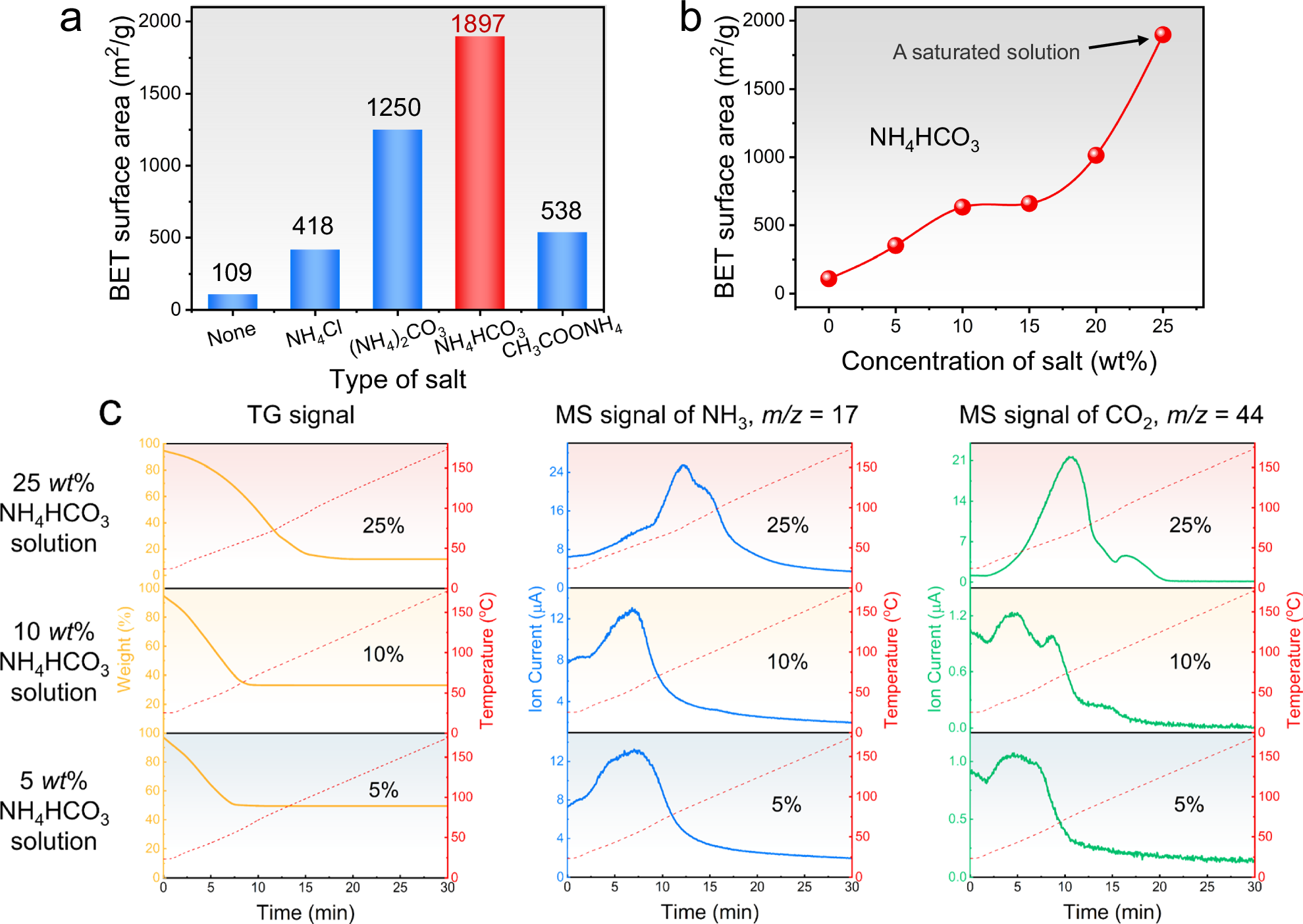

a BET surface area of SG-COF-1 synthesized with different types of salts. b Optimization of the BET surface area for SG-COF-1 prepared using different concentrations of NH4HCO3. c Thermogravimetric curves and mass spectrometry curves of SG-COF-1 constructed by varied concentrations of NH4HCO3 during the activation process.
