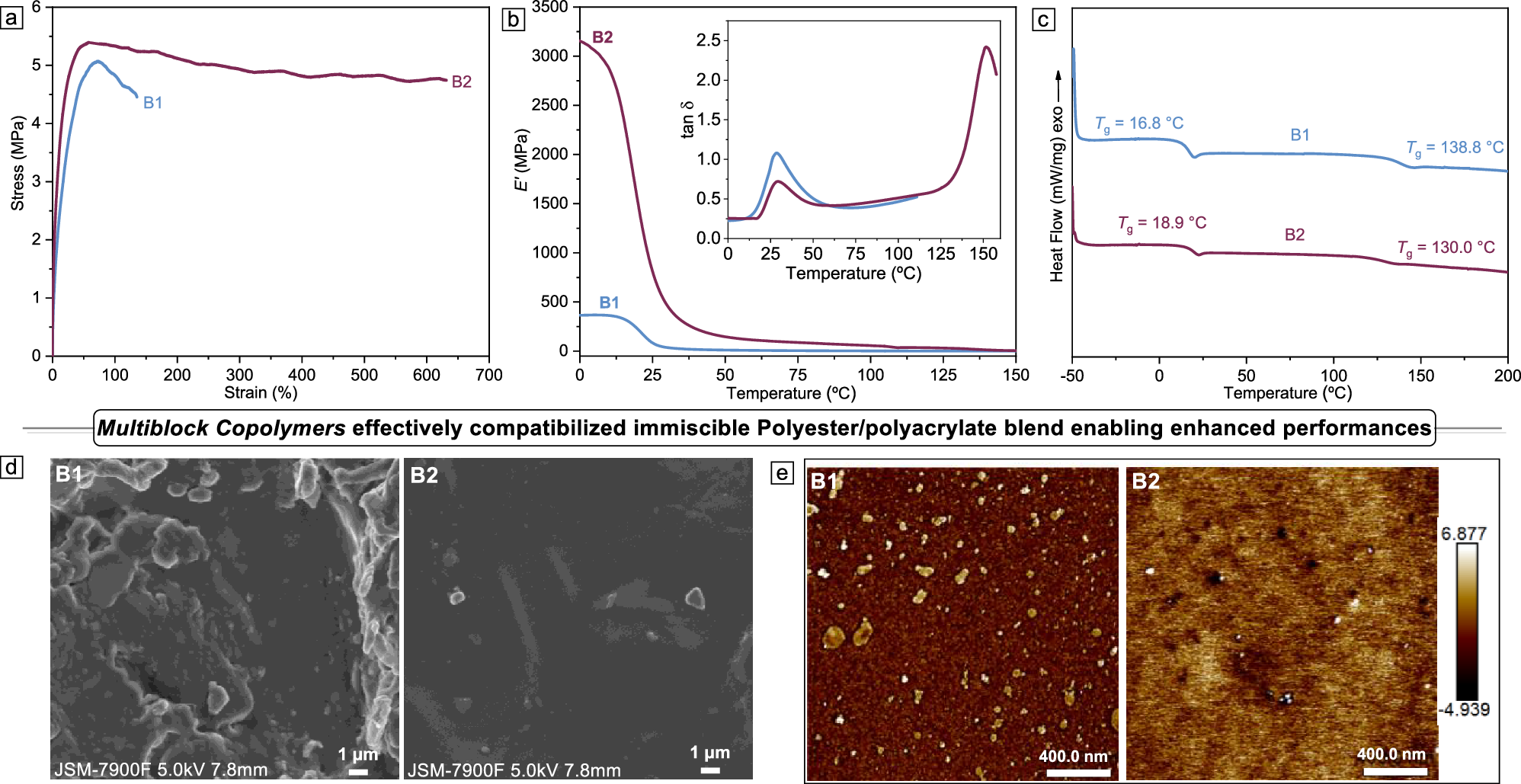

Fig. 7: Compatibilization performance characterization of different samples. PCP/PMA blends (50:50 wt%, B1); B1 with added 3 wt% MBCP2 (B2).
From: Synthesis of highly effective polyester/polyacrylate compatibilizers using switchable polymerization
a Stress–strain curves. b Storage moduli and tan δ. c DSC traces of the second heating. d SEM images of B1 (left) and B2 (right). e AFM images of B1 (left) and B2 (right).
