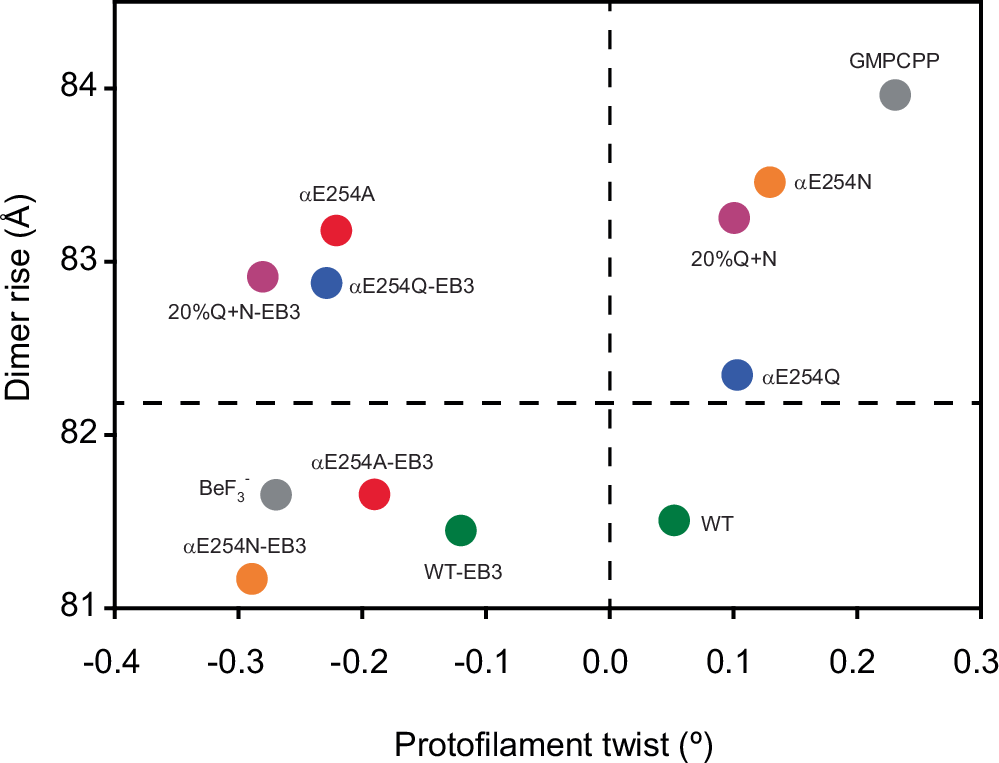

Fig. 6: Lattice parameters of WT and microtubule GTP cap mimics.
From: Hydrolysis-deficient mosaic microtubules as faithful mimics of the GTP cap
Protofilament twist versus dimer rise plot of αE254Q, αE254Q-EB3-CH, 20%Q + N, and 20%Q + N-EB3-CH-microtubules compared with previous undecorated and EB3-CH-decorated GTP-cap mimics and GDP microtubules34. Data for the structures characterized in this work are shown in Table 3 and Supplementary Tables 2 and 3. Source data are provided as a Source Data file.
