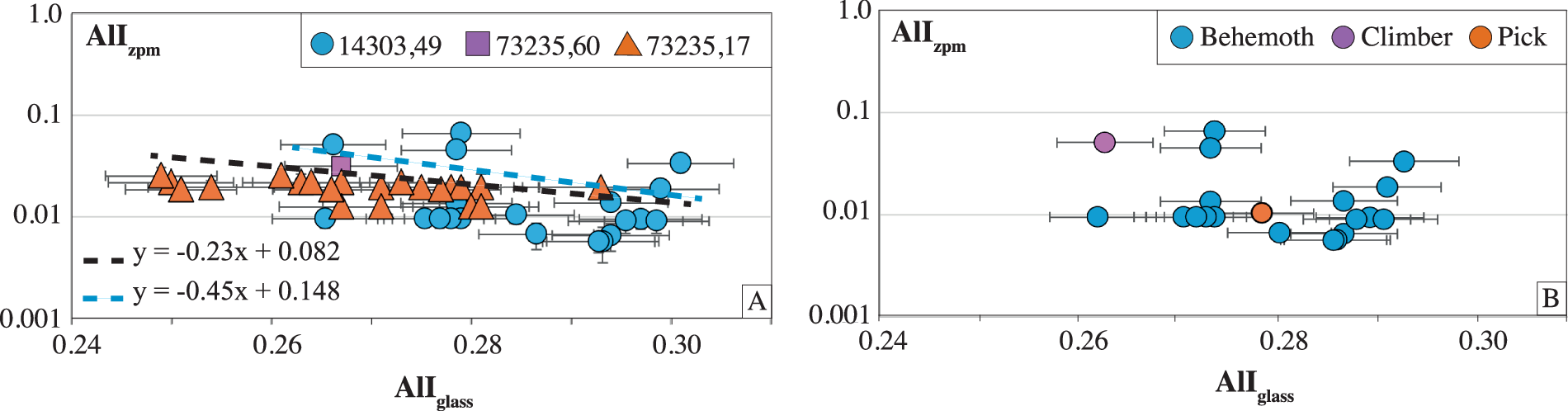

Fig. 3: Allass vs AlIzpm for zircons and coexisting glass.
From: Pervasive impact modification of pristine lunar clasts
A All zircon and glass data, showing a flat to negative correlation, as indicated by the linear regression equation (whole data set in black; only Behemoth zircon analyses in blue). Orange triangle are matrix zircons from 73235,17, purple squares are matrix zircons from 73235,60 and blue circles are felsic clast zircons from 14303,49. B Zircon and glass data from sample 14303,49, including Behemoth (blue circle), Pick (orange circles, and Climber (purple circles), also exhibiting a flat to negative correlation. A positive correlation would be expected if the zircon and melt were cogenetic, suggesting that the zircons and glass do not share a common origin. Error bars show 1σ uncertainties.
