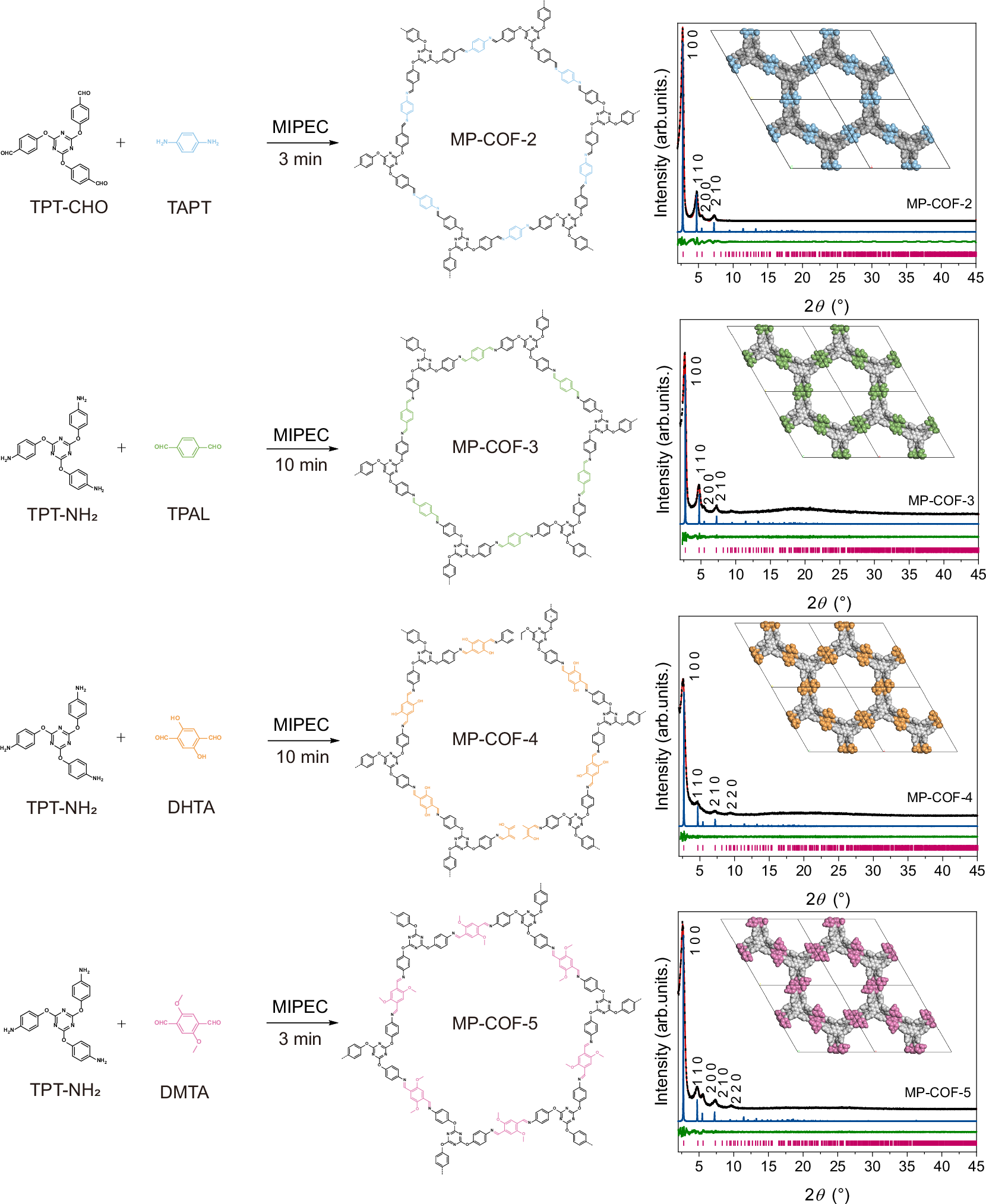

Fig. 4: Chemical molecular structure and PXRD patterns of MP-COF-2 to MP-COF-5.

The experimental PXRD pattern (black), the Pawley refined pattern (red), the simulated pattern obtained from the modeled structure (blue), the difference pattern (green), the Bragg positions (pink).
