Fig. 1: Differential method based on micro control unit (MCU) and in-memory differentiator for processing motion images.

From: In-memory ferroelectric differentiator

Fig. 1

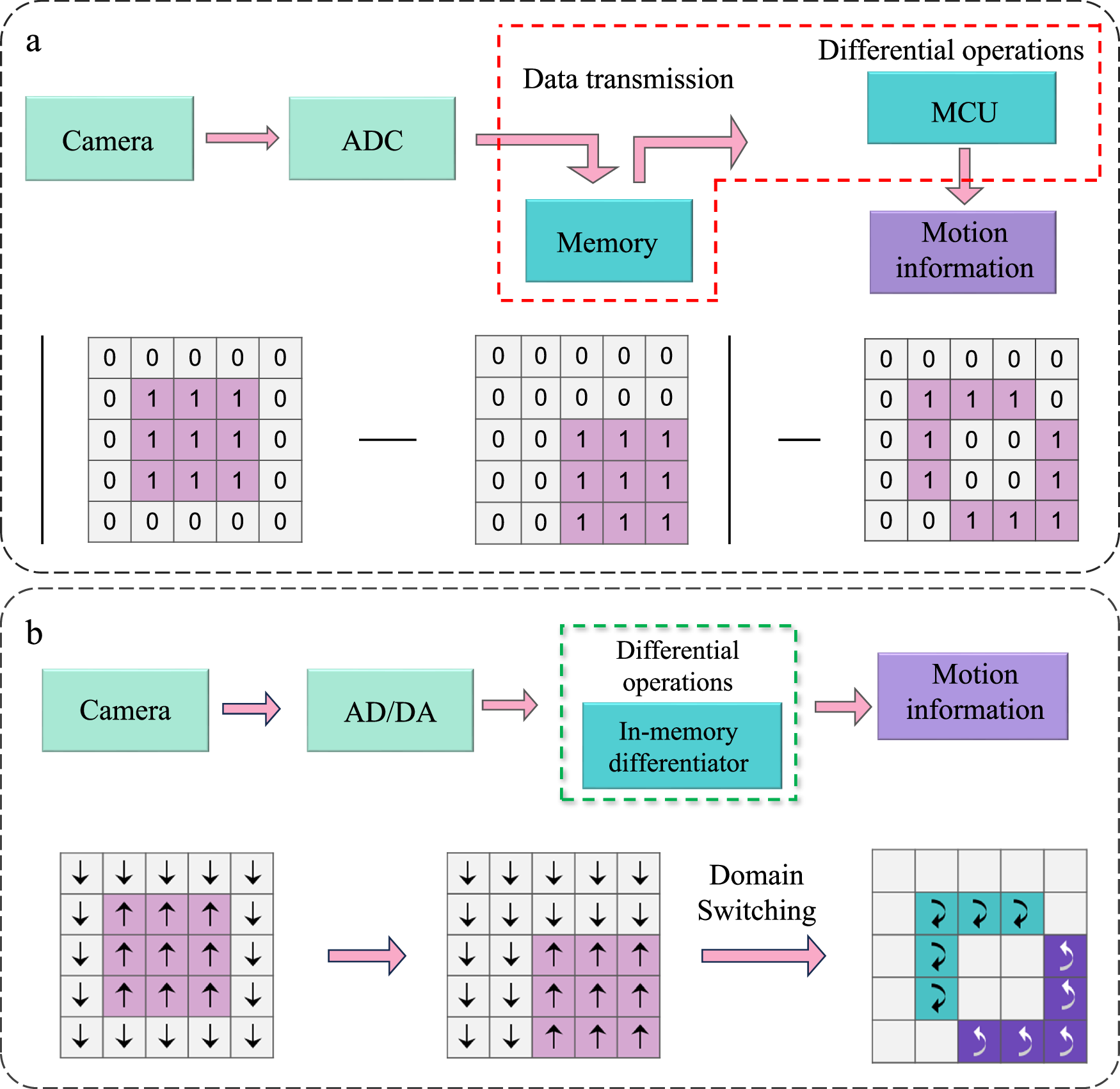

a A flowchart of MCU-based motion image processing. Inset shows that differential operations are serially performed by the MCU. b Same as (a) but with an in-memory differentiator. Inset shows that the in-memory differentiator enables both the storage of the previous frame image and the acquisition of the frame difference through ferroelectric domain dynamics.
