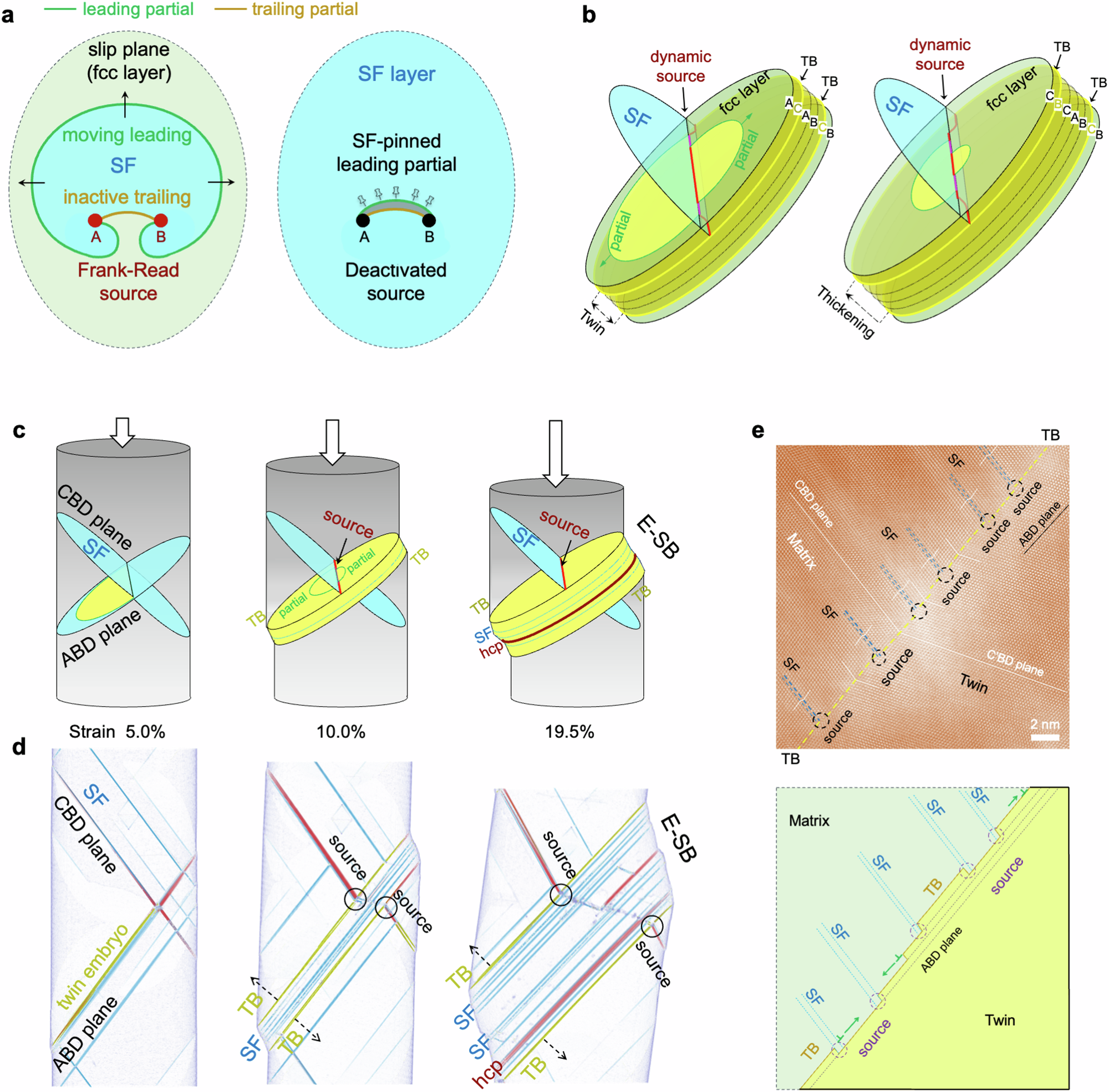

Fig. 5: Dislocation mechanisms driving extended slip band formation.

a Schematic illustration of Frank-Read source deactivation. Expansion of a leading partial dislocation loop generates stacking fault in its traversed area, eventually leaving a new segment of the leading partial dislocation at the source. The formed SF pinning leading partial, consequently deactivating the source. b Schematics of dynamic dislocation sources creation. The new dislocation source, formed at intersections of stacking fault and twin boundary, moves its location with the twin boundary. c, d Atomistic modeling shows the E-SB formation. The dynamically relocating dislocation sources enable dislocation emission across successive layers, thus thickening the slip band. d Only the defective atoms are shown. e High-resolution HAADF-STEM image shows the concentrated SF-TB junctions and steps along the twin boundary. The dense twinning sources collectively drive TB migration and promote rapid twin growth at the microscale.
