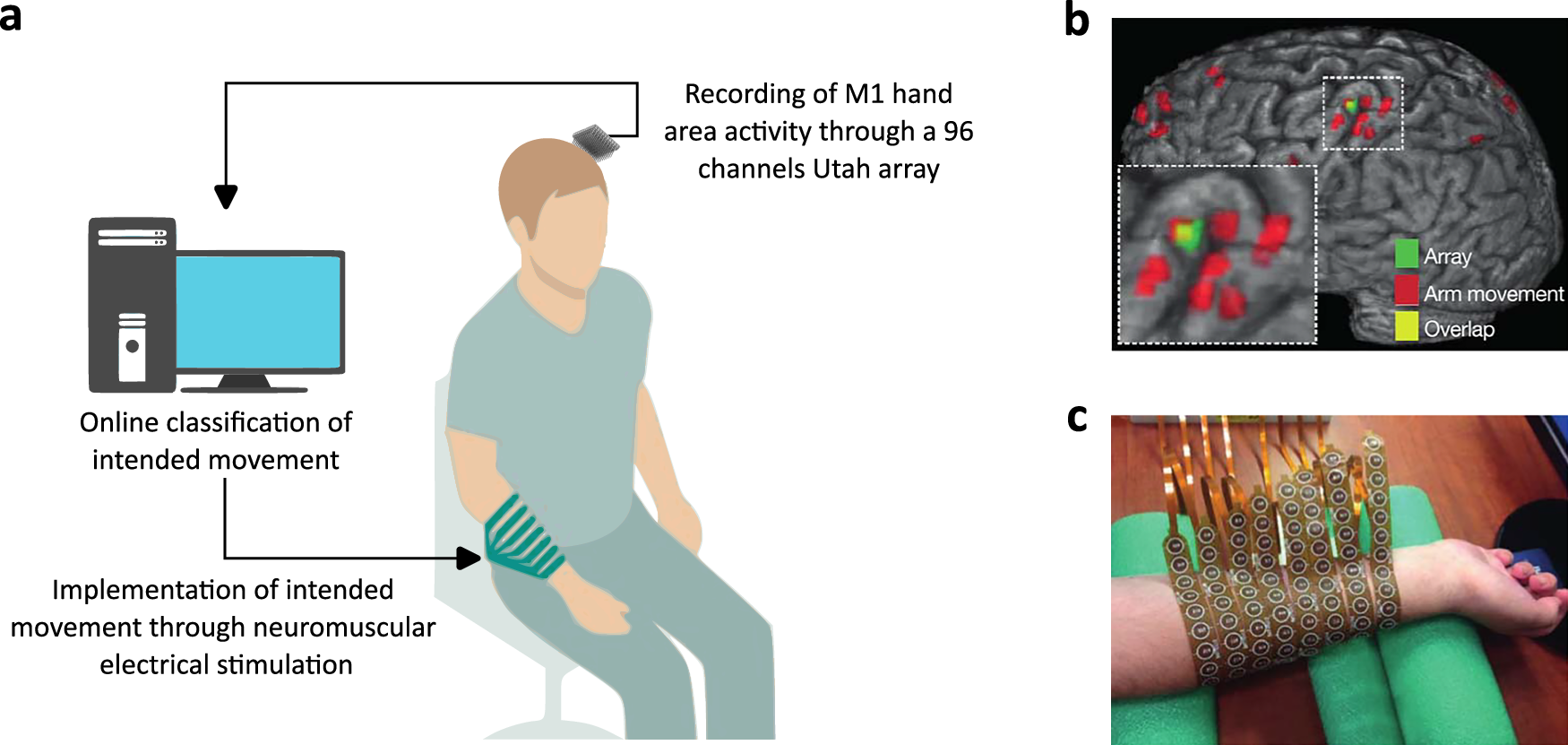

Fig. 1: BMI setup for Experiment 1 and 2.
From: Pre-movement sensorimotor oscillations shape the sense of agency by gating cortical connectivity
a Neural activity generated as the participant attempted to move his right hand was recorded from the region controlling hand movements in the participant’s left motor cortex through a 96 channels Utah array. Motor attempts were decoded by a nonlinear support vector machine based on oscillatory power in the multiunit range (234–3750 Hz) for each channel. The decoded movement was executed through a custom NMES sleeve (panel c). Figure 1a was adapted from Serino, A., Bockbrader, M., Bertoni, T. et al. Sense of agency for intracortical brain-machine interfaces. Nat Hum Behav 6, 565–578 (2022). https://doi.org/10.1038/s41562-021-01233-213. b fMRI scan showing areas coding for hand movement (red), array position (green) and their overlap (yellow). c Custom NMES system fitted on the participant’s hand. Figures 1b, c were adapted with the permission of Springer Nature (License Number 5991990373709, https://s100.copyright.com/order/709aa318-3008-4709-aff3-5a7d49b394f5) from Bouton, C., Shaikhouni, A., Annetta, N. et al. Restoring cortical control of functional movement in a human with quadriplegia 533, 247–250 (2016). https://doi.org/10.1038/nature1743574.
