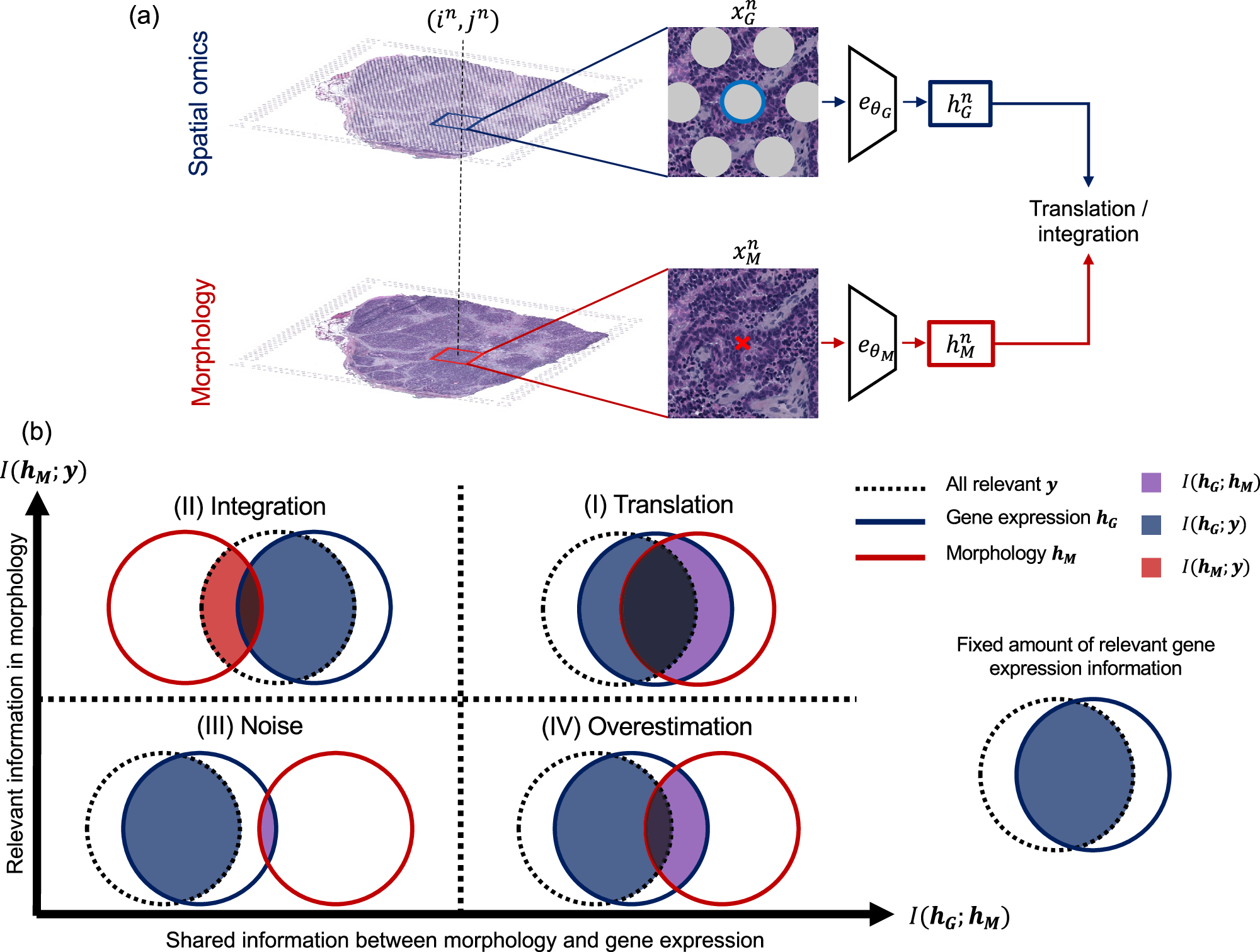

Fig. 1: Translation-integration framework.
From: Combining spatial transcriptomics with tissue morphology
