Fig. 4: β-casein collision cross section distributions (DTCCSTKHe) for the four most abundant ions.

From: Conformational landscapes of rigid and flexible molecules explored with variable temperature ion mobility-mass spectrometry

Fig. 4: β-casein collision cross section distributions (DTCCSTKHe) for the four most abundant ions.

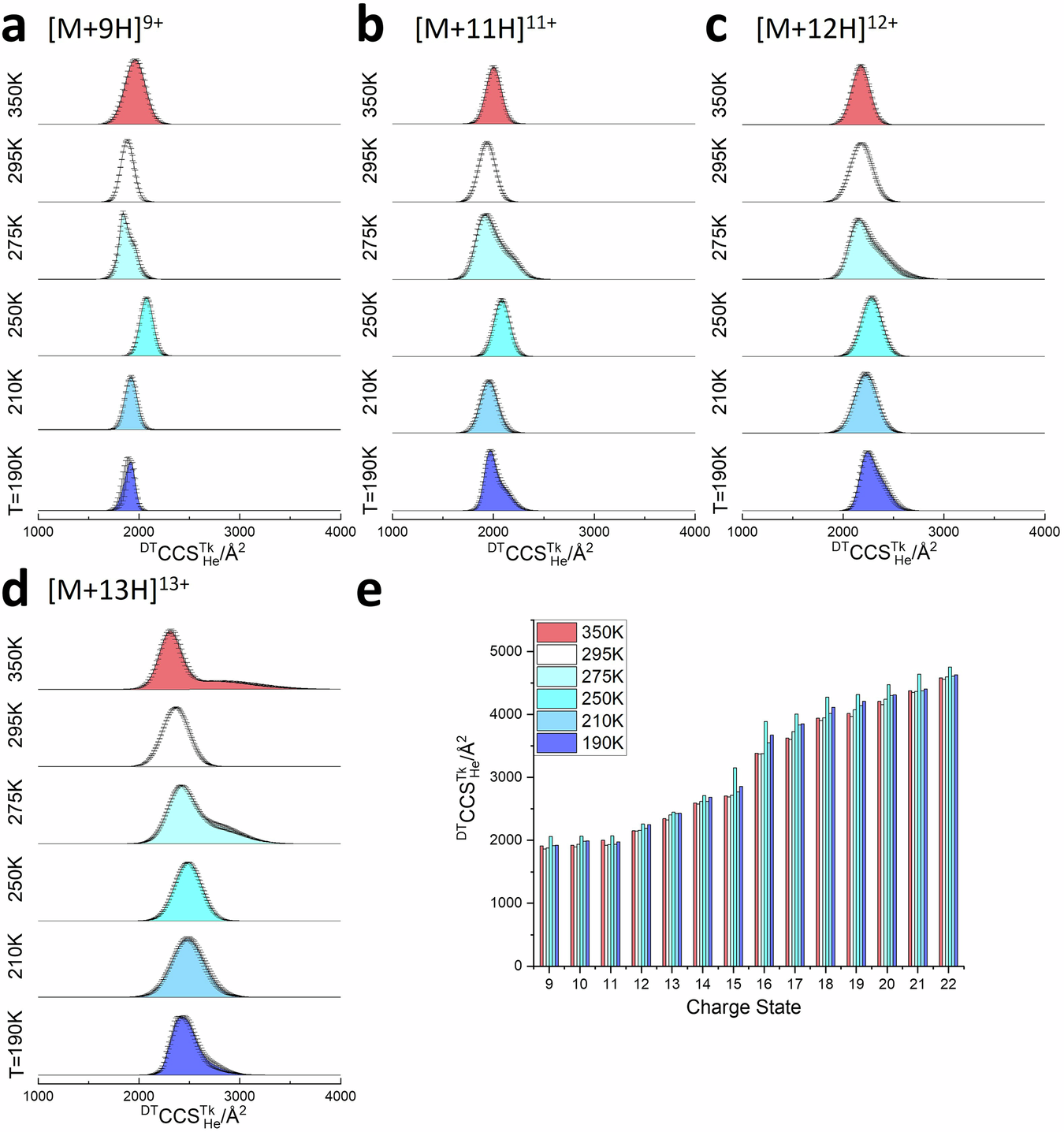

a [M+9H]9+, b [M+11H]11+, c [M+12H]12+ and d [M+13H]13+ in the temperature range of 295 K to 190 K. Error bars represent the standard deviation from three replicates. Sub-ambient temperature median DTCCSTKHe values for all other detected charge ([M+9H]9+ - [M+22H]22+) states are shown in (e). Here is the interactive plot for data above.
