Fig. 1: In-sensor compressing and computing.

From: In-sensor compressing via programmable optoelectronic sensors based on van der Waals heterostructures for intelligent machine vision

Fig. 1

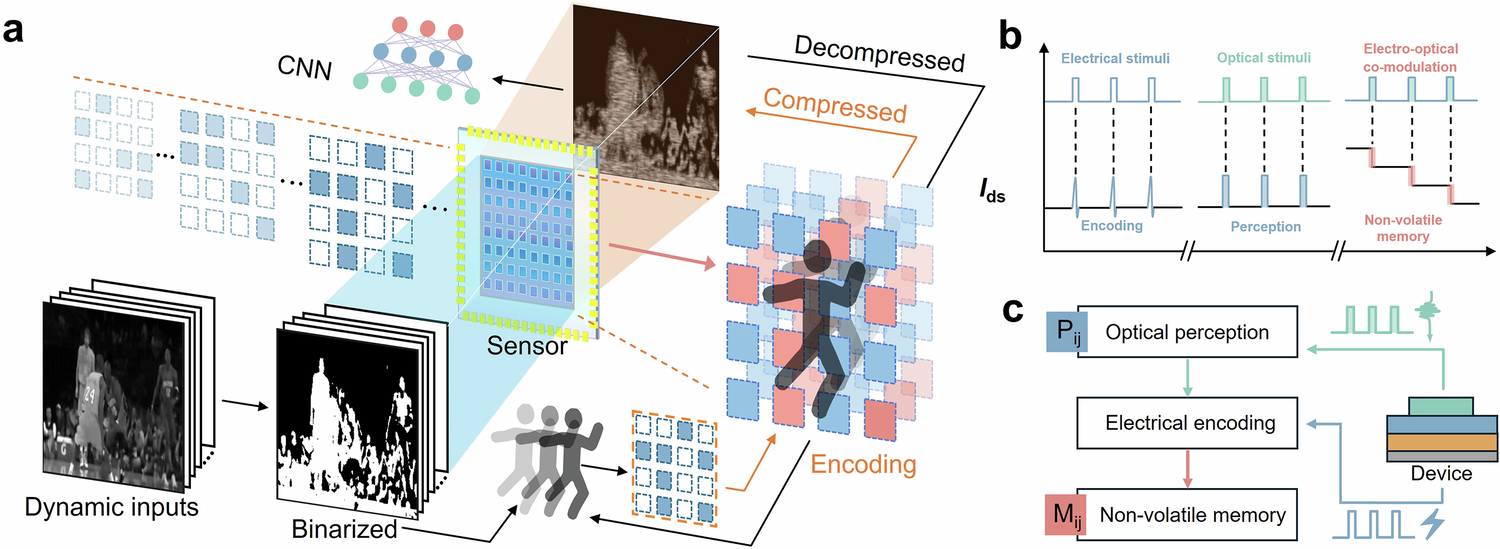

a Schematic illustration of compressing dynamic binarized images by using PPMS (Programmable Photoinduced Memory Sensor) and for in-sensor computing, where dynamic Kobe motions (reproduced with permission from ref. 50) are pre-binarized as the inputs. b The relationship between input pulses (both electrical and optical stimuli) and output responses. c The dynamic functions enabled by the sensor.
