Fig. 5: Video and spectral SCI enabled by PPMS.

From: In-sensor compressing via programmable optoelectronic sensors based on van der Waals heterostructures for intelligent machine vision

Fig. 5: Video and spectral SCI enabled by PPMS.

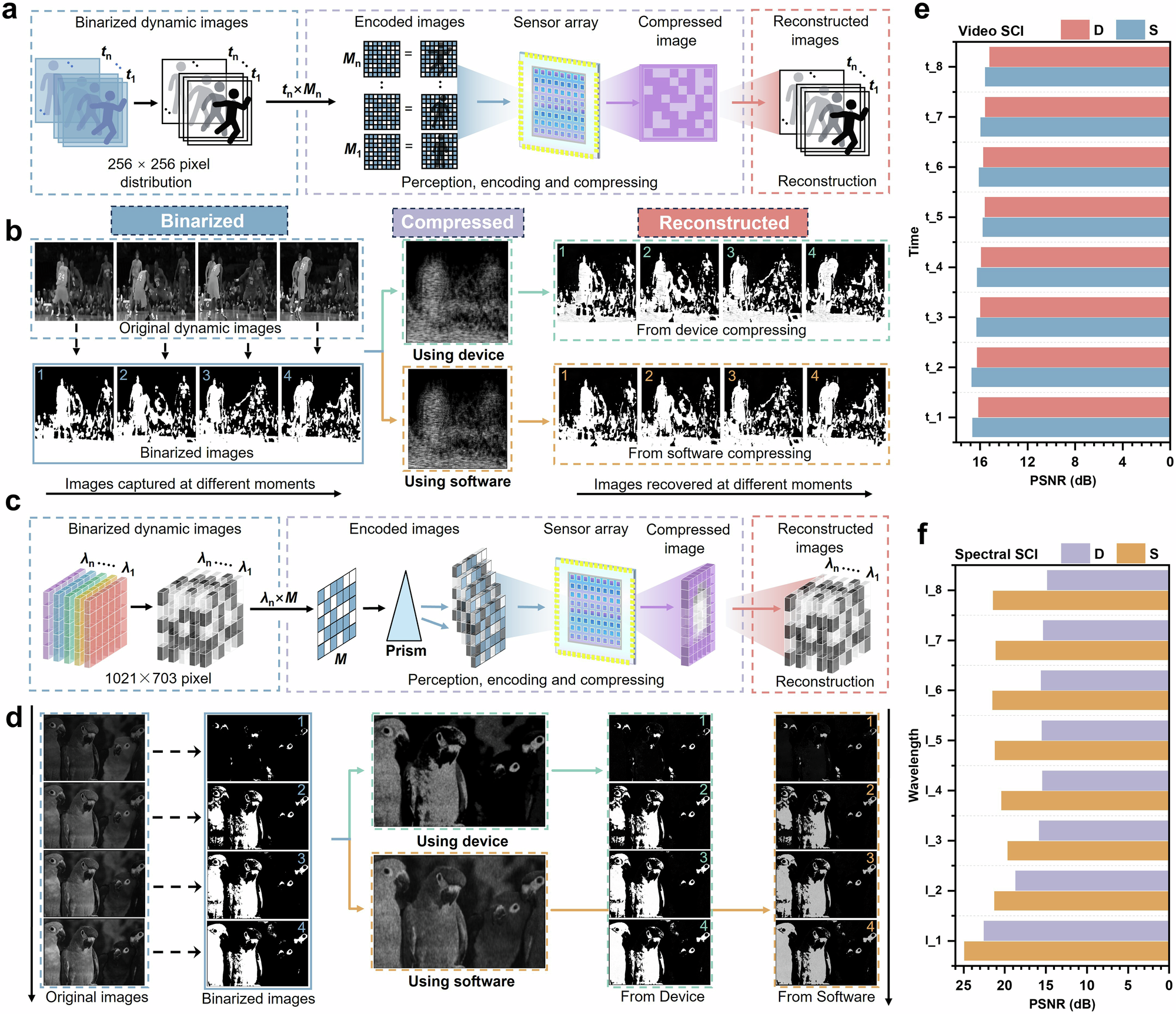

a Schematic illustration of video SCI process. b Comparison between the compression and the PnP-enabled reconstruction of dynamic frames from pre-binarized Kobe motion scenes (reproduced with permission from ref. 50) by the device and software, respectively. c Schematic illustration of spectral SCI process. d Comparison between the compression and PnP-enabled reconstruction of spectral frames from pre-binarized Bird scenes (reproduced with permission from ref. 54) by the device and software, respectively. Histogram summarizing the peak signal-to-noise ratio (PSNR) values in (e) video and (f) spectral SCI based on device (D) and software (S), respectively.
