Fig. 3: Structure and morphology characterization of Pt/C-TiO(B)-650.
From: Photocatalytic synthesis of ethylene glycol and hydrogen from methyl tert-butyl ether

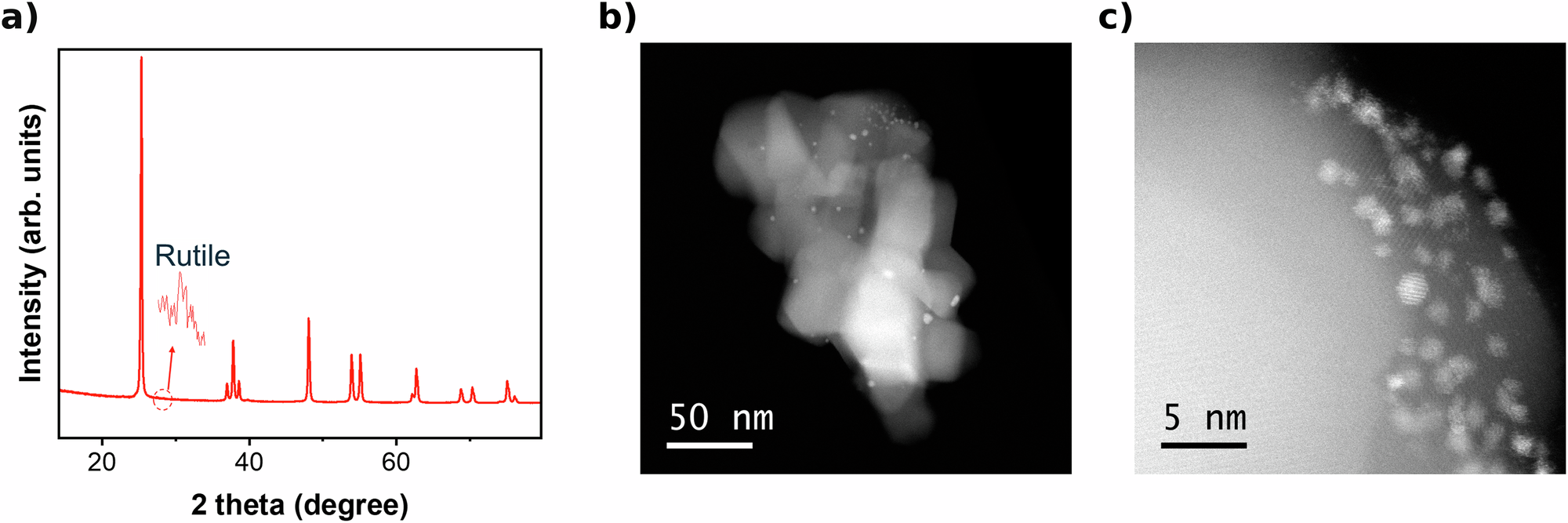

a XRD patterns (Source data are provided as a Source Data file), and (b, c) selected HAADF-STEM images collected from Pt/C-TiO(B)-650 sample.
