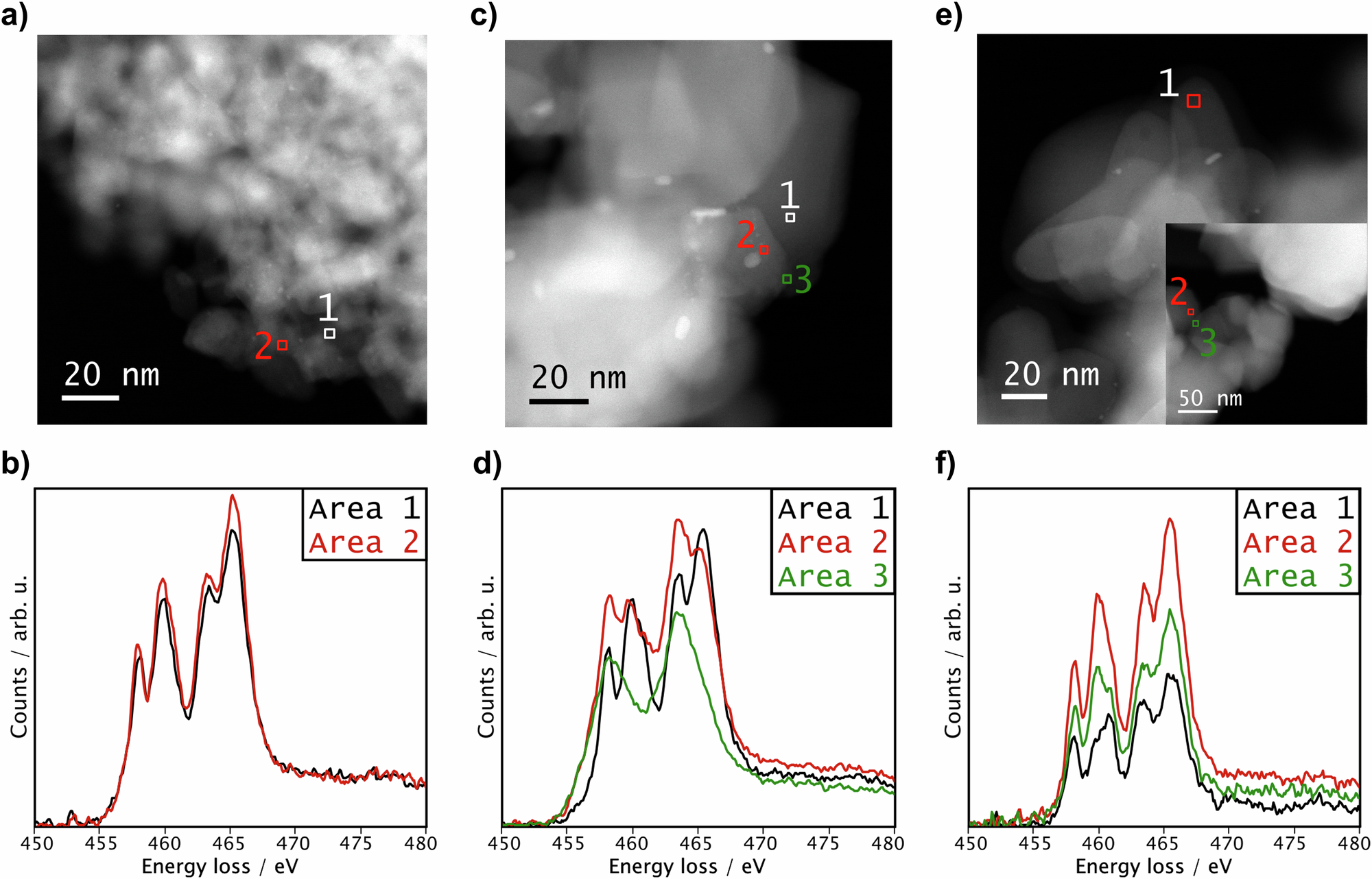

Fig. 4: ADF-STEM images and corresponding EEL spectra of the highlighted areas.
From: Photocatalytic synthesis of ethylene glycol and hydrogen from methyl tert-butyl ether
Panels (a, b), (c, d), and (e, f) were acquired from Pt/Ti(B)-450, Pt/C-Ti(B)-650, and Pt/C-Ti(B)-750, respectively. (Source data are provided as a source Data file).
