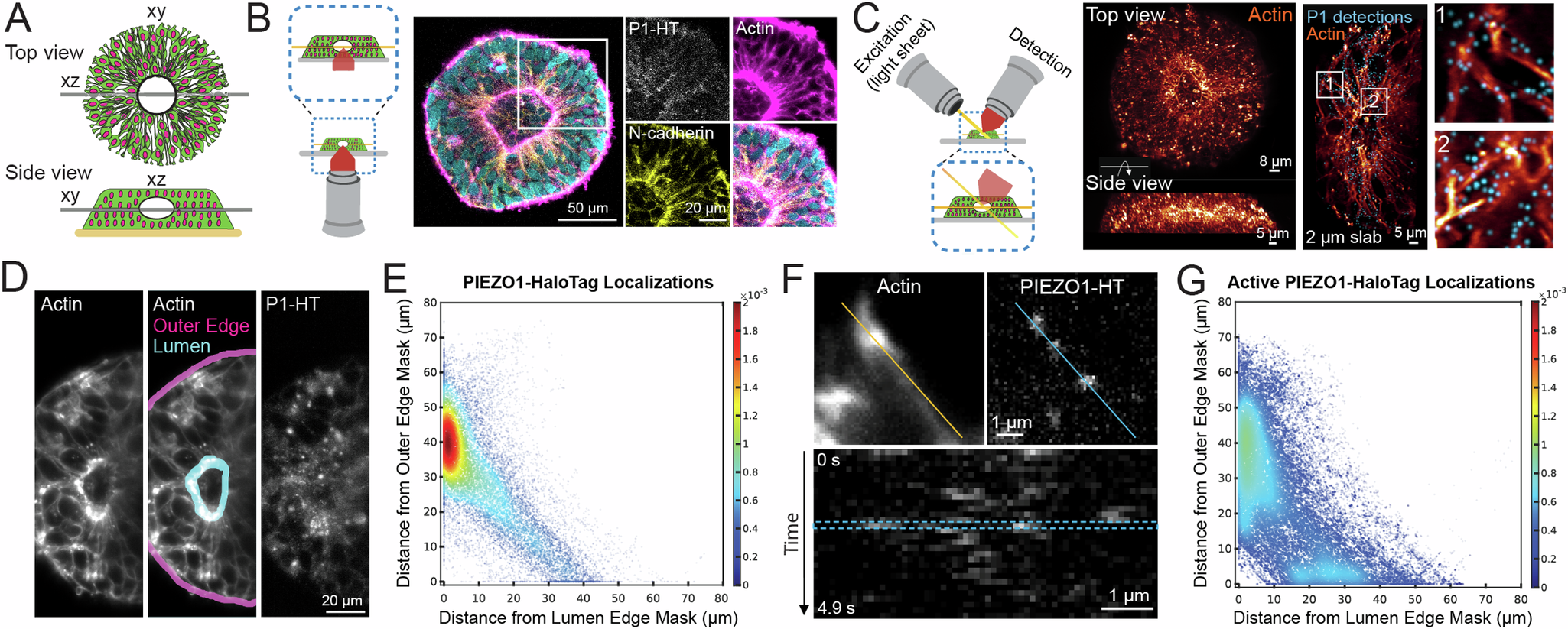

Fig. 5: Visualizing the spatial distribution and activity of PIEZO1-HaloTag puncta in micropatterned neural rosettes (MNRs).
