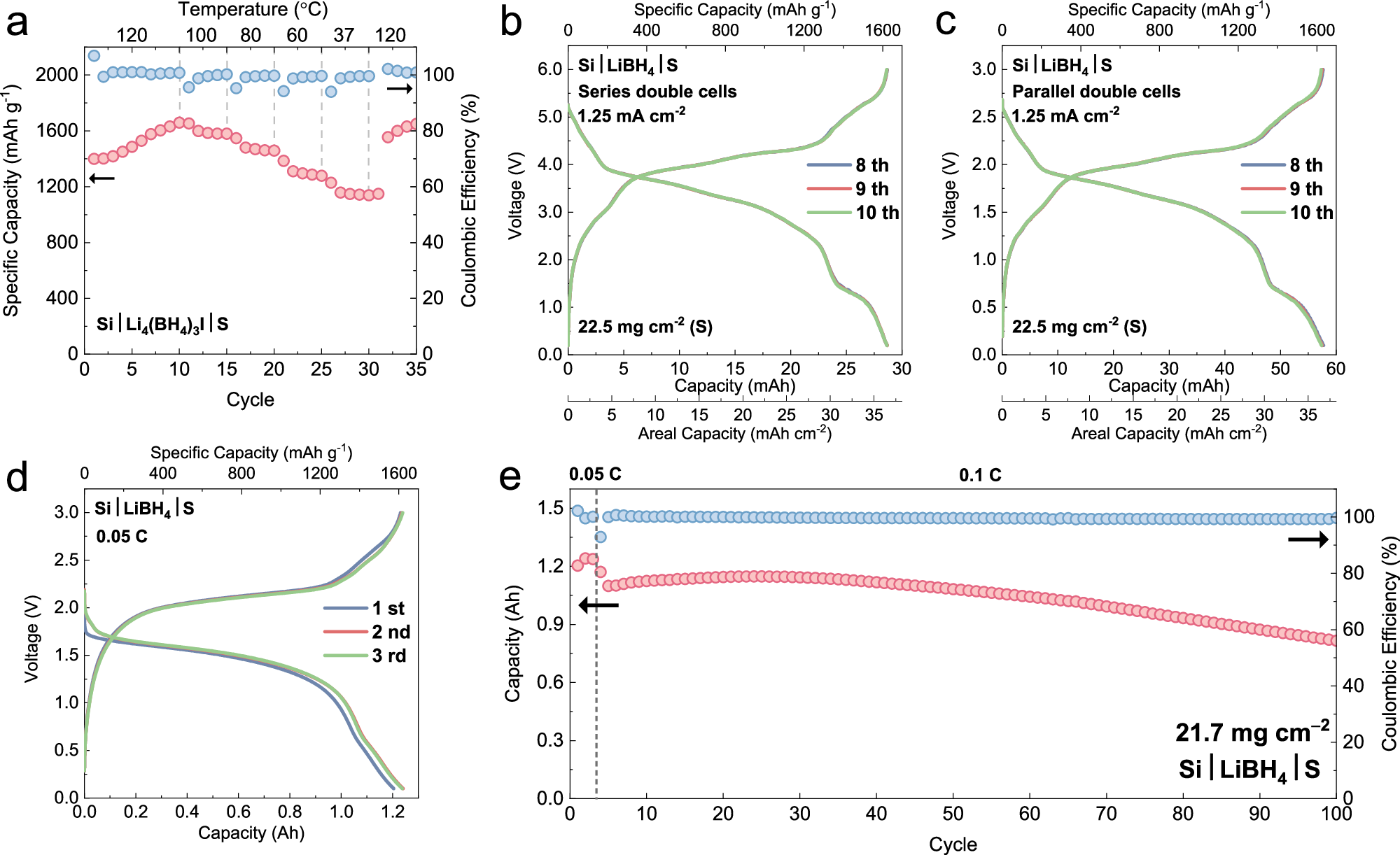

Fig. 5: Wide temperature performance, cell pack and Ah-level sample of Si–S cells.
From: Dynamic volume compensation realizing Ah-level all-solid-state silicon-sulfur batteries
a The electrochemical performance of Si–S full cell at a wide temperature range, b The voltage profiles of the series double cells, c The voltage profiles of the parallel double cell, d The voltage profiles of Ah-level cell at 0.05C, e Cycling stability of the Ah-level cell.
