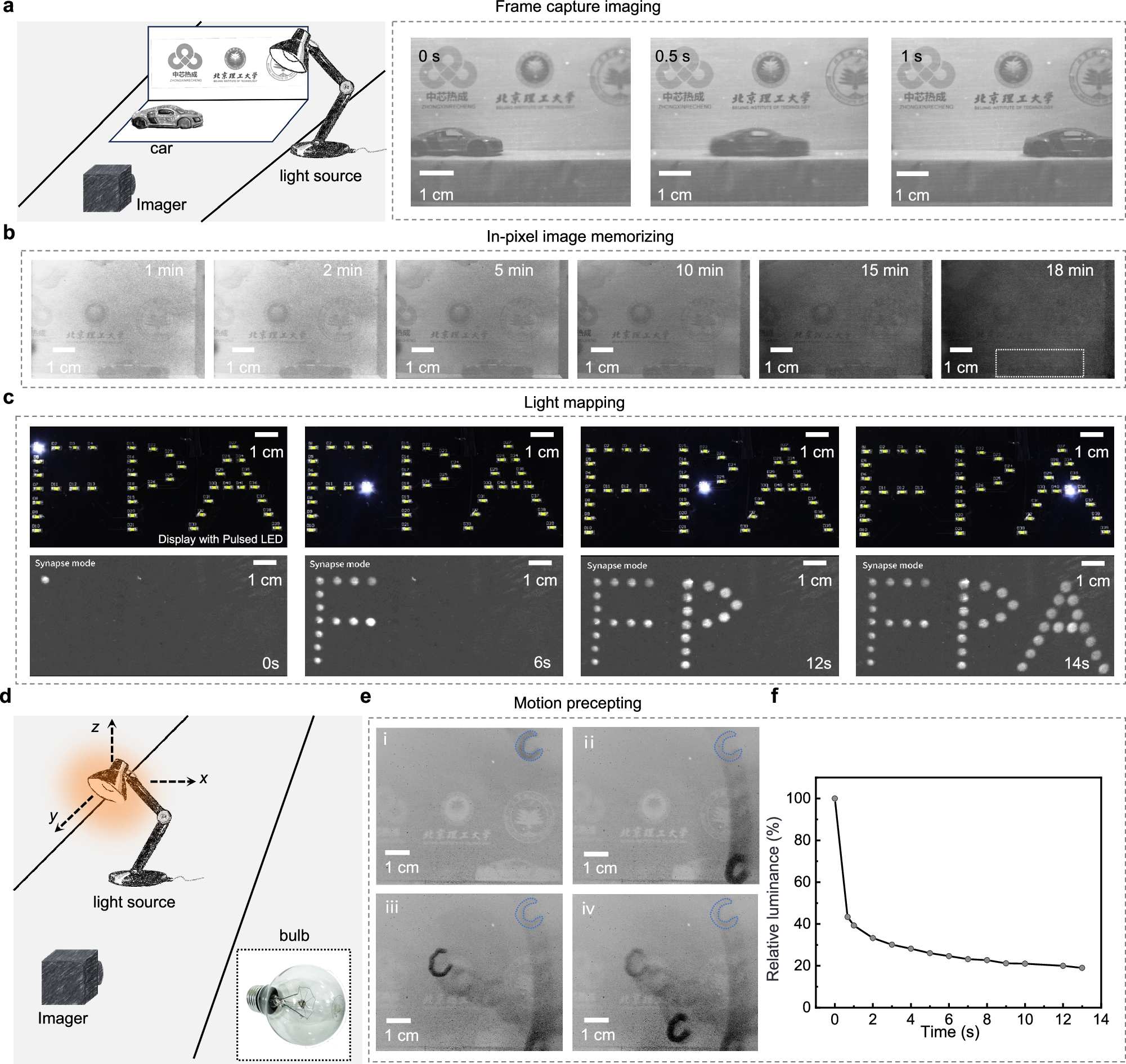

Fig. 5: Dual-modal imaging of the neuromorphic imager.
From: CMOS-integrated organic neuromorphic imagers for high-resolution dual-modal imaging
a Illustration of imaging setup and images of car moving captured in standard mode at various time points. b Images of a car captured in synapse mode at various times after the light source has been removed. c Illustration of “FPA” pattern LED arrays pulsed in sequence (time duration of 0.5 s) and images of illuminated LED captured at different times. d Illustration of imaging setup using neuromorphic FPA imagers. A tungsten lamp is used as the light source and placed about 40 cm in front of the imagers. The insert is the photograph of the bump used in the study. e Images of the light filament captured at different times. f The lamp luminance changes of the ROI (blue region in Fig. 5e) over time.
