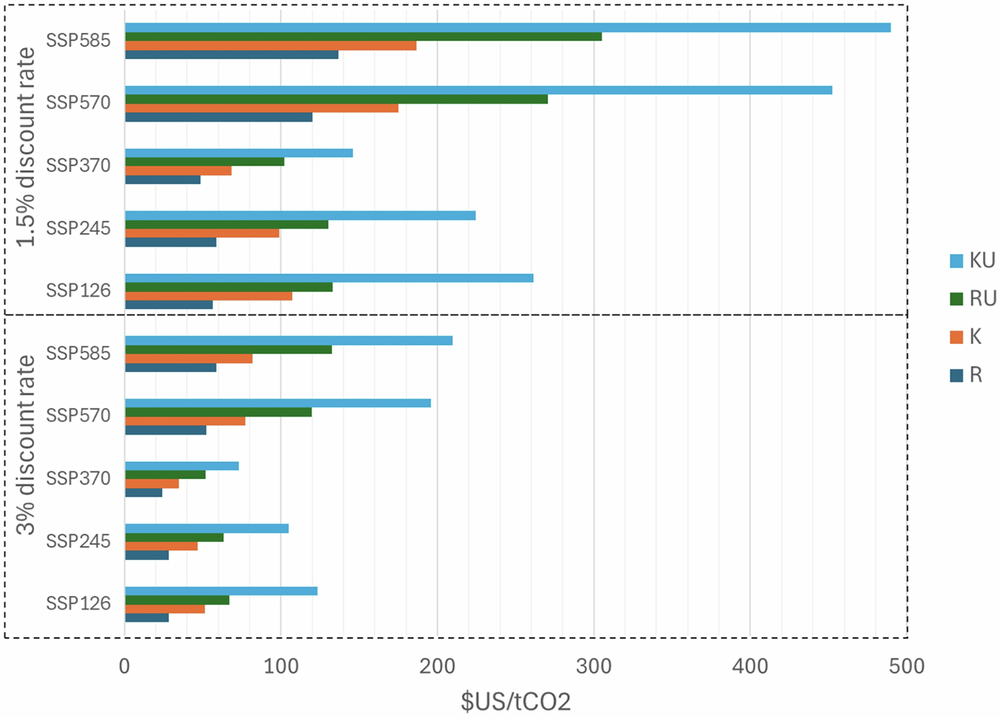

Fig. 1: SCC estimates for different SSP scenarios, damage functions and discount rates.
From: Urban and non-urban contributions to the social cost of carbon
Light blue and green bars denote the use of the KU and K damage functions, while orange and dark blue bars show results obtained using the RU and R damage functions. The K damage functions are based on estimates in Kompas et al.54, while the R damage functions are an updated and extended version those in DICE/RICE28,50,67. KU and RU indicate that the UHI effects are included. The upper and lower sections of the figure present the estimated SCC values for 1.5% and 3% consumption discount rates, respectively.
