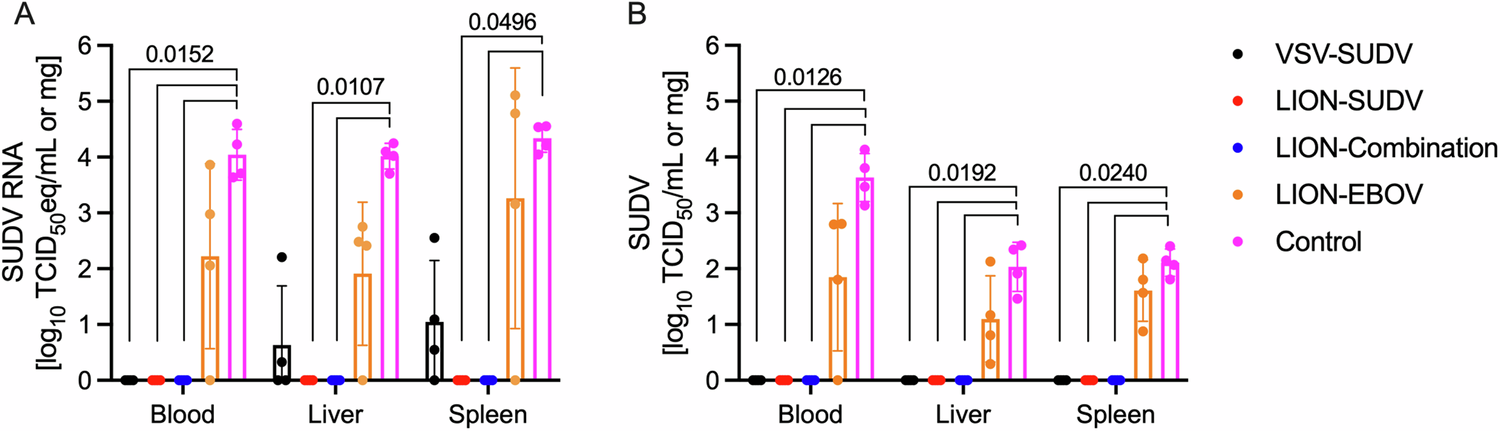

Fig. 2: Viremia and tissue viral loads in guinea pigs.
From: Single-dose replicon RNA Sudan virus vaccine uniformly protects female guinea pigs from disease
A SUDV RNA levels and (B) infectious SUDV titers in the blood, liver, and spleen of vaccinated and challenged guinea pigs (n = 4) collected 6 days post-infection. Datasets display geometric mean and geometric standard deviation and were analyzed using the Kruskal–Wallis test with Dunn’s multiple comparisons. Statistically significant differences in comparison to the control group are indicated.
