Fig. 2: Characterization of twin boundaries in the ZnSe0.7Te0.3@C.

From: Engineering twin structures and substitutional dopants in ZnSe0.7Te0.3 anode material for enhanced sodium storage performance

Fig. 2

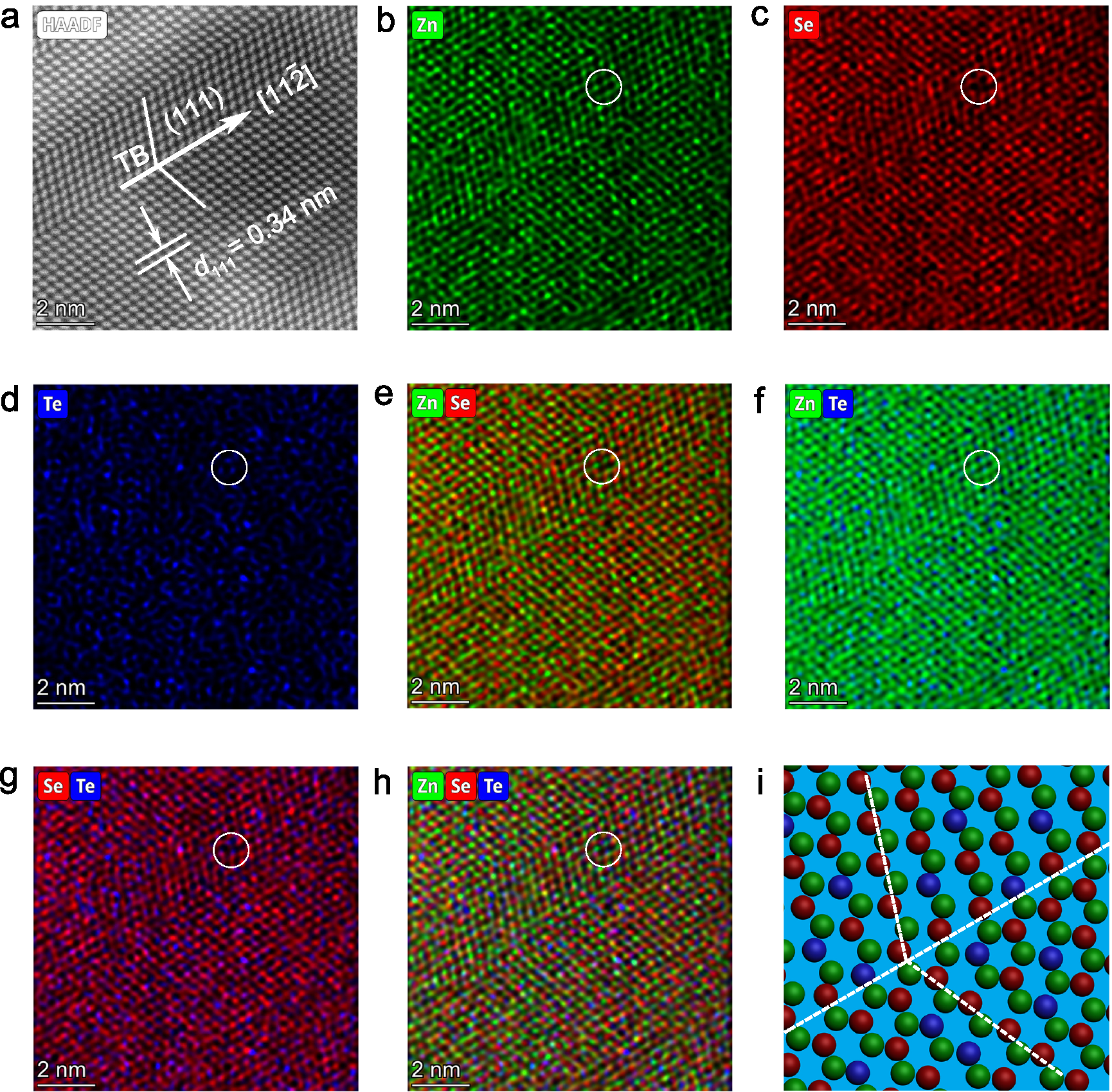

a–h Atomically resolved HAADF–STEM image (a) and the corresponding EDX maps of b Zn, c Se, d Te, e Zn and Se merging, f Zn and Te merging, g Se and Te merging, and h Zn, Se, and Te merging. i Atomic model schematic illustration of the twin ZnSe0.7Te0.3 (Zn: green, Se: red, and Te: blue).
