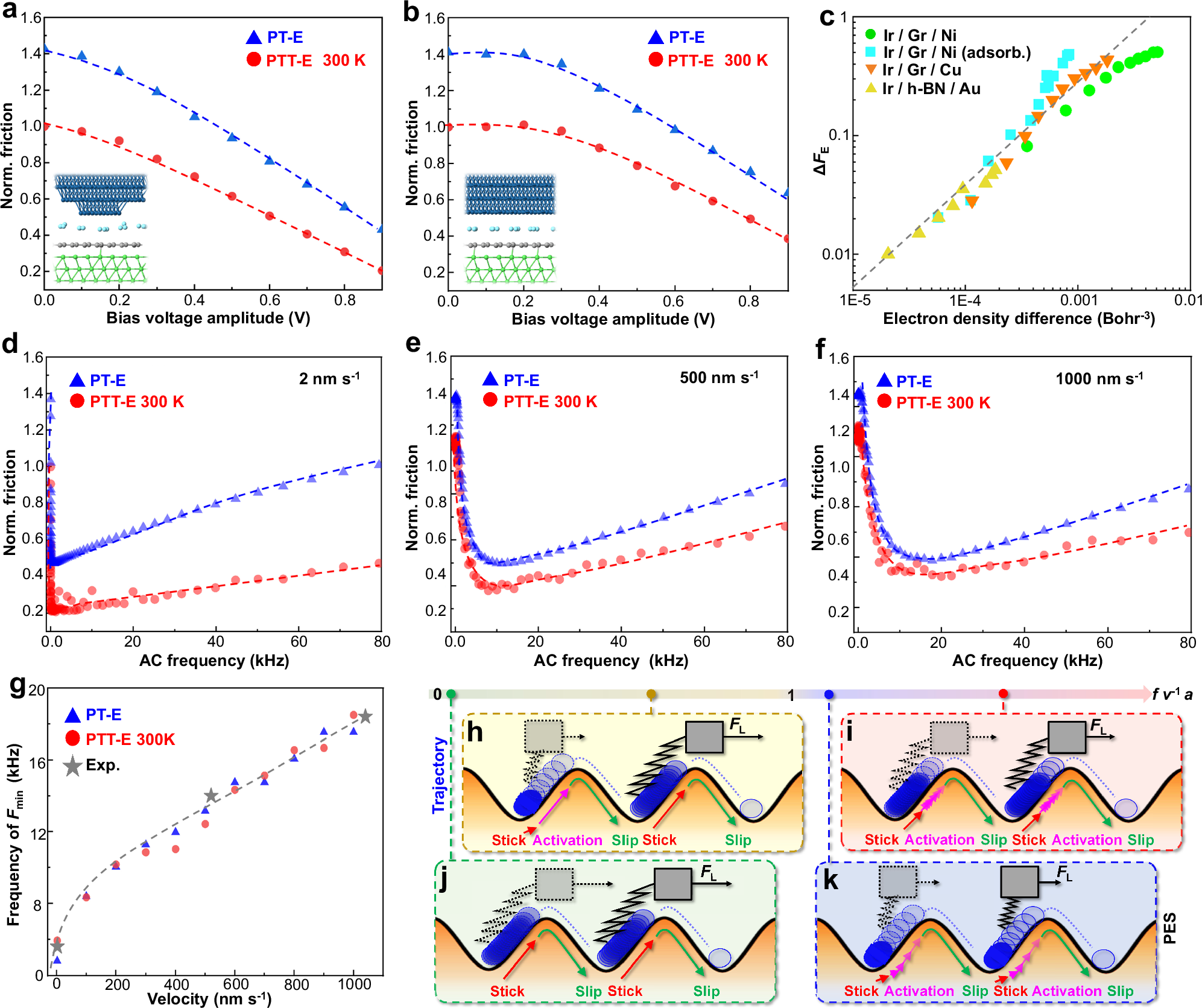

Fig. 5: Investigation of friction influencing factors under applied alternating current using the PT-E and PTT-E models.
