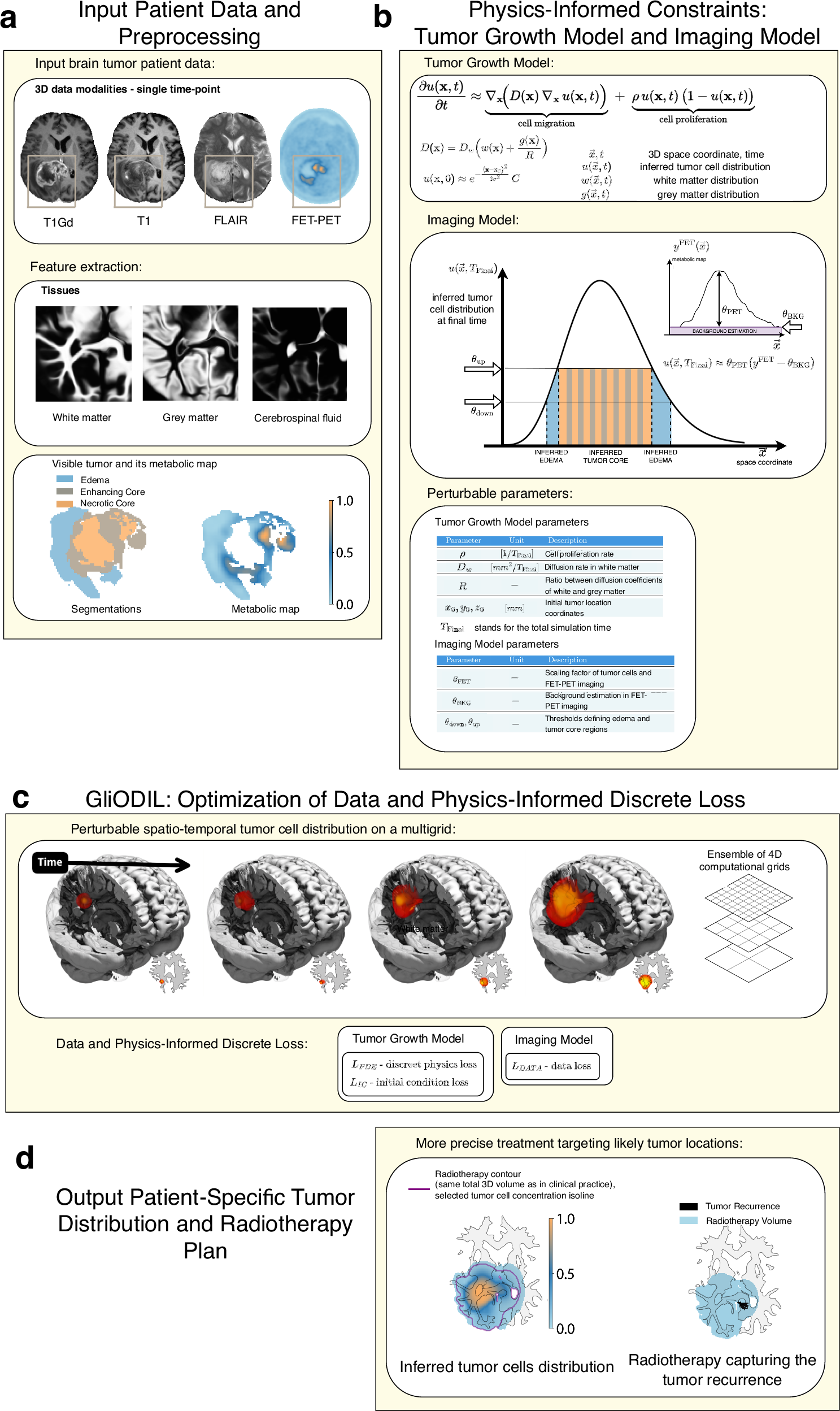

Fig. 1: GliODIL overview.
a Multi-modal patient data comprising MR and PET imaging. Tissue extraction using atlas registration21 and automatic brain tumor segmentation32 are performed to define the tumor boundaries and microenvironments. Automatically segmented tumor regions include three components:(i) edema, characterized by tissue swelling due to fluid accumulation; (ii) enhancing core, indicative of active tumor growth and characterized by vascular leakage, and (iii) necrotic core, showing tissue death due to hypoxia or nutrient deprivation. Corresponding FET-PET scans provide metabolic insight, further aiding in accurate tumor delineation. b Prior knowledge about the tumor growth process and the imaging signatures of tumor cells. The physics of tumor growth is described by a partial differential equation (PDE), while the relationship between tumor cells and the available imaging data is modeled through the Imaging Model. c Spatio-temporal progression of a tumor within patient anatomy. Calculation of PDE's residual LPDE and single focal initial condition LIC. Unknown fields are stored on a 4-dimensional multi-resolution grid. Optimization utilizes automatic differentiation of each gridpoint and is guided by the loss function. Since we model the progression based on a single time-point input data, the growth parameters are being resolved up to a timescale. Calculation of discrepancy between patient’s tumor characteristics LDATA and proposed by GliODIL tumor cell-distribution at the final time-point. d GliODIL outputs. The framework successfully infers the complete distribution of tumor cells, facilitating the development of a radiotherapy plan. This plan effectively covers areas of tumor recurrence identified in post-operative data, while maintaining the total radiotherapy volume in line with standard clinical guidelines.
