Fig. 3: Observation of continuous nucleation and comparison with burst nucleation.

From: Single particle fluorescence imaging of perovskite nanocrystal crystallization for illustrating coupled nucleation-and-growth

Fig. 3

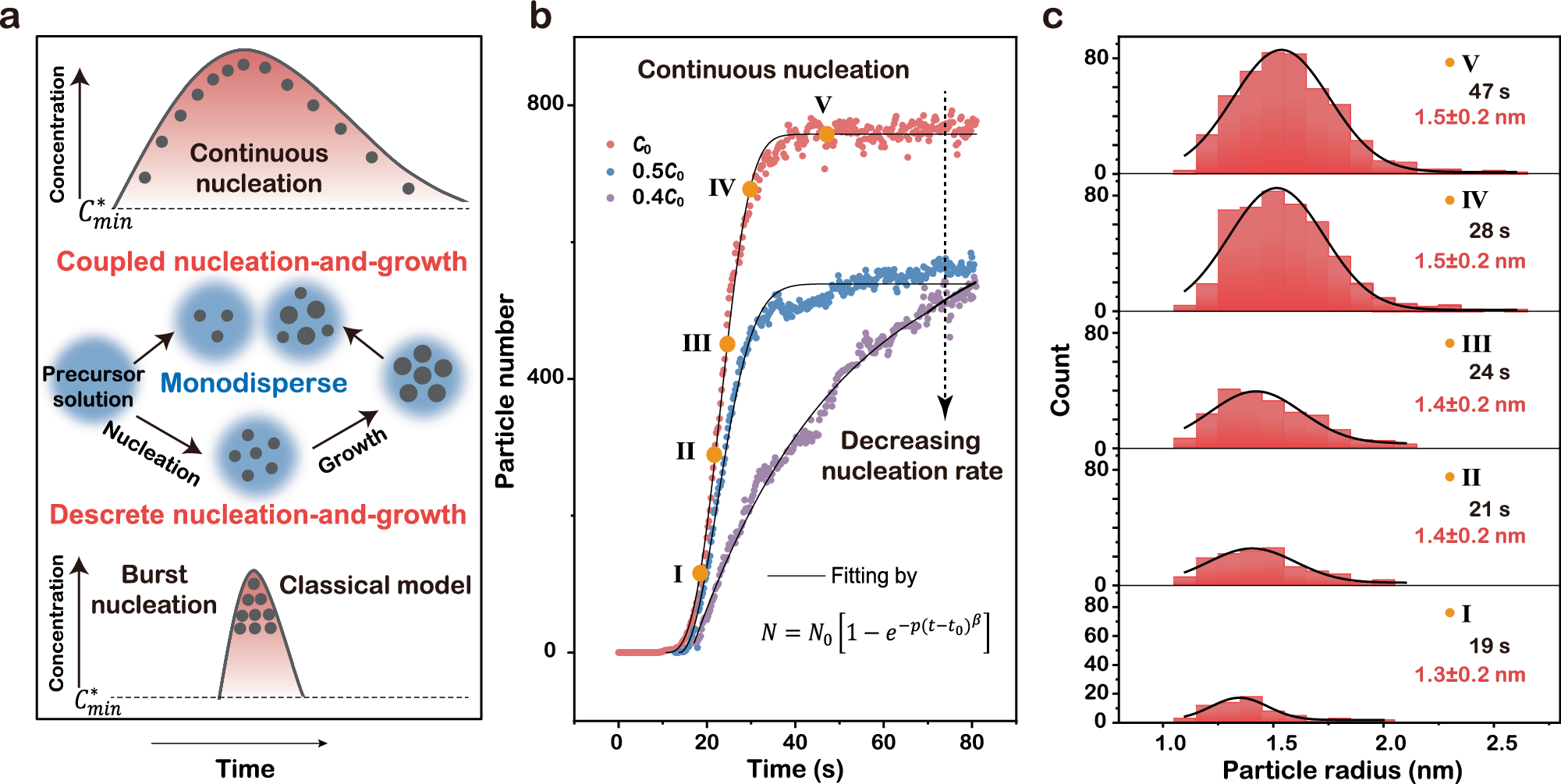

a Schematic illustration of monodisperse nanocrystals with continuous nucleation and burst nucleation. b Temporal evolution of particle number at precursor concentration of C0 (red line), 0.5C0 (blue line) and 0.4C0 (orange line) on an area of 307 pixels \(\times\) 307 pixels (\(10{{{\rm{\mu }}}}{{{\rm{m}}}}\times 10{{{\rm{\mu }}}}{{{\rm{m}}}}\)) in fluorescence images. c Histograms of particle radius distribution and their Gauss fitting at different nucleation time prolonging at precursor concentration of C0.
