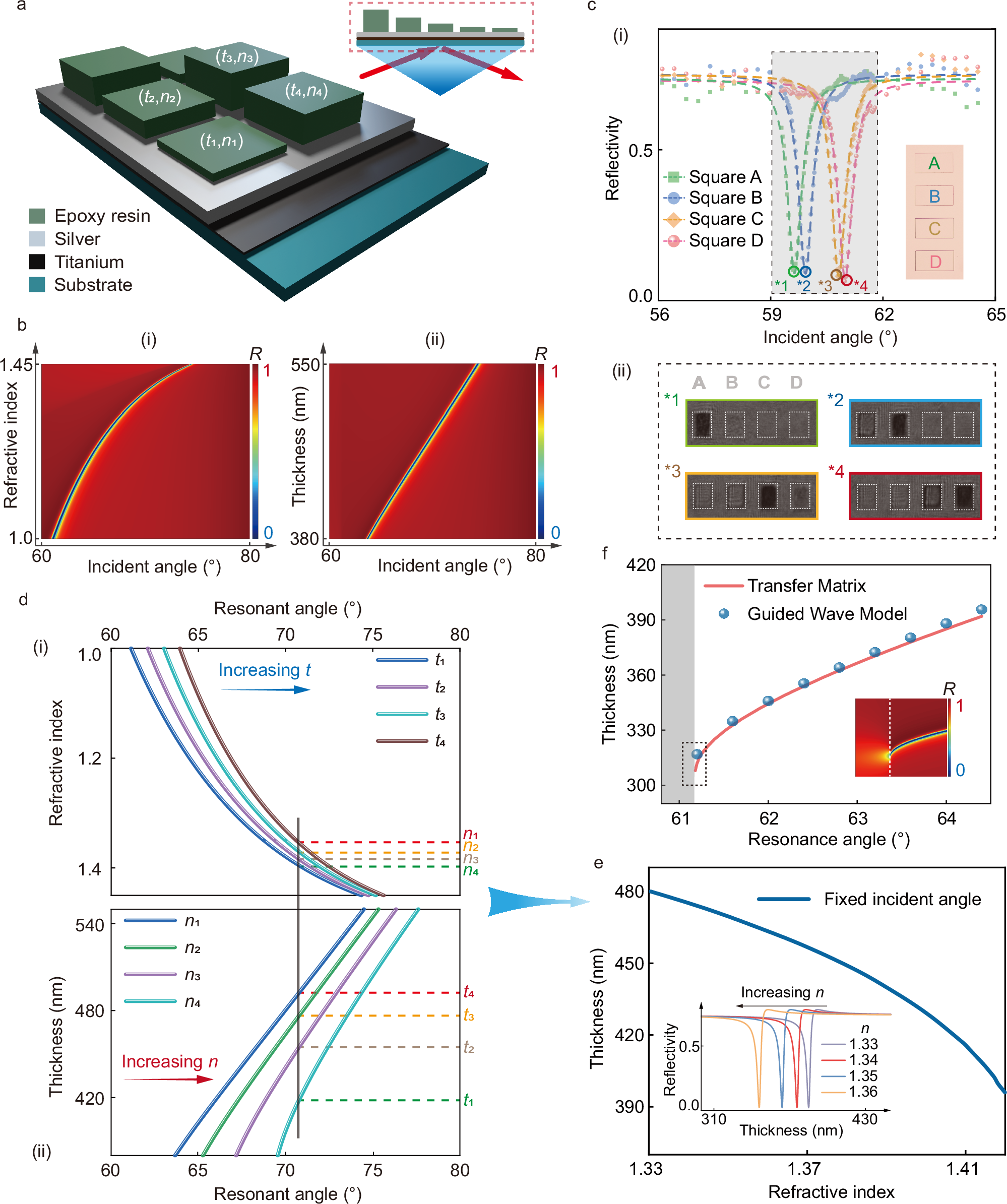

Fig. 2: The simulated and experimental results of thickness-modulating for refractive index sensing.
