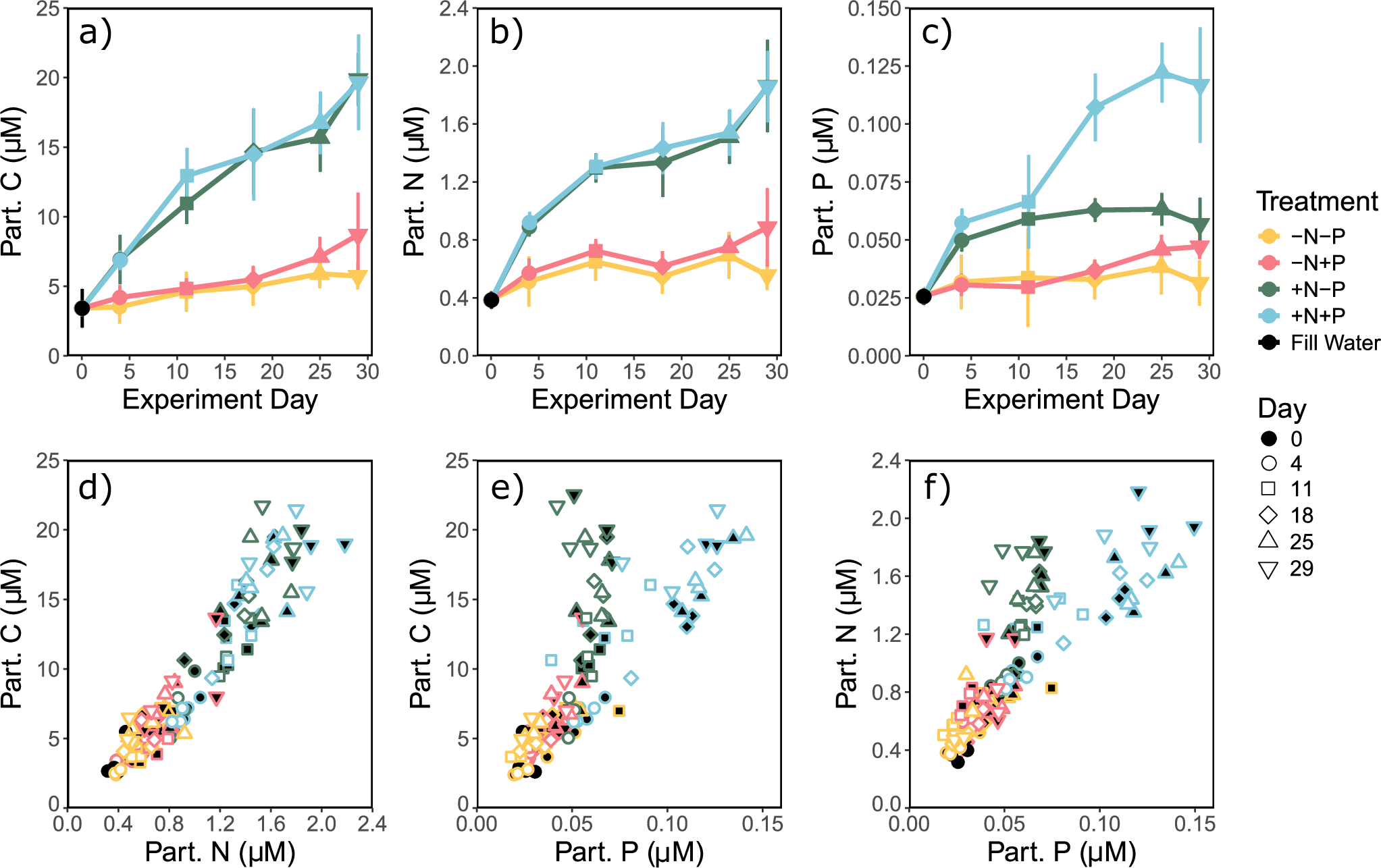

Fig. 1: Particulate C:P and N:P are sensitive to the nutrient N:P supply ratio, while C:N is more constant.
From: Nitrogen and phosphorus differentially control marine biomass production and stoichiometry
Concentrations of particulate carbon (C) (a), nitrogen (N) (b), and phosphorus (P) (c) in the incubations over time show that particulate C accumulation was stimulated by the addition of N and was equivalent whether or not P was added along with N. Error bars represent 1 σ for treatment replicates (n = 6, except for all -N+P, +N+P on day 11 in a–c, and -N-P on day 29 in c where n = 5). Also shown are relationships between particulate C and N (d), C and P (e), and N and P (f). Point shapes indicate sampling day. Sub-treatments are denoted in d-f by the point fill color; added iron (+Fe) treatments are filled black and no iron added (‒Fe) treatments are filled white. Source data are provided as a Source Data file.
