Fig. 2: The HSV-1-host protein interactome as captured by SHVIP.
From: Structural host-virus interactome profiling of intact infected cells

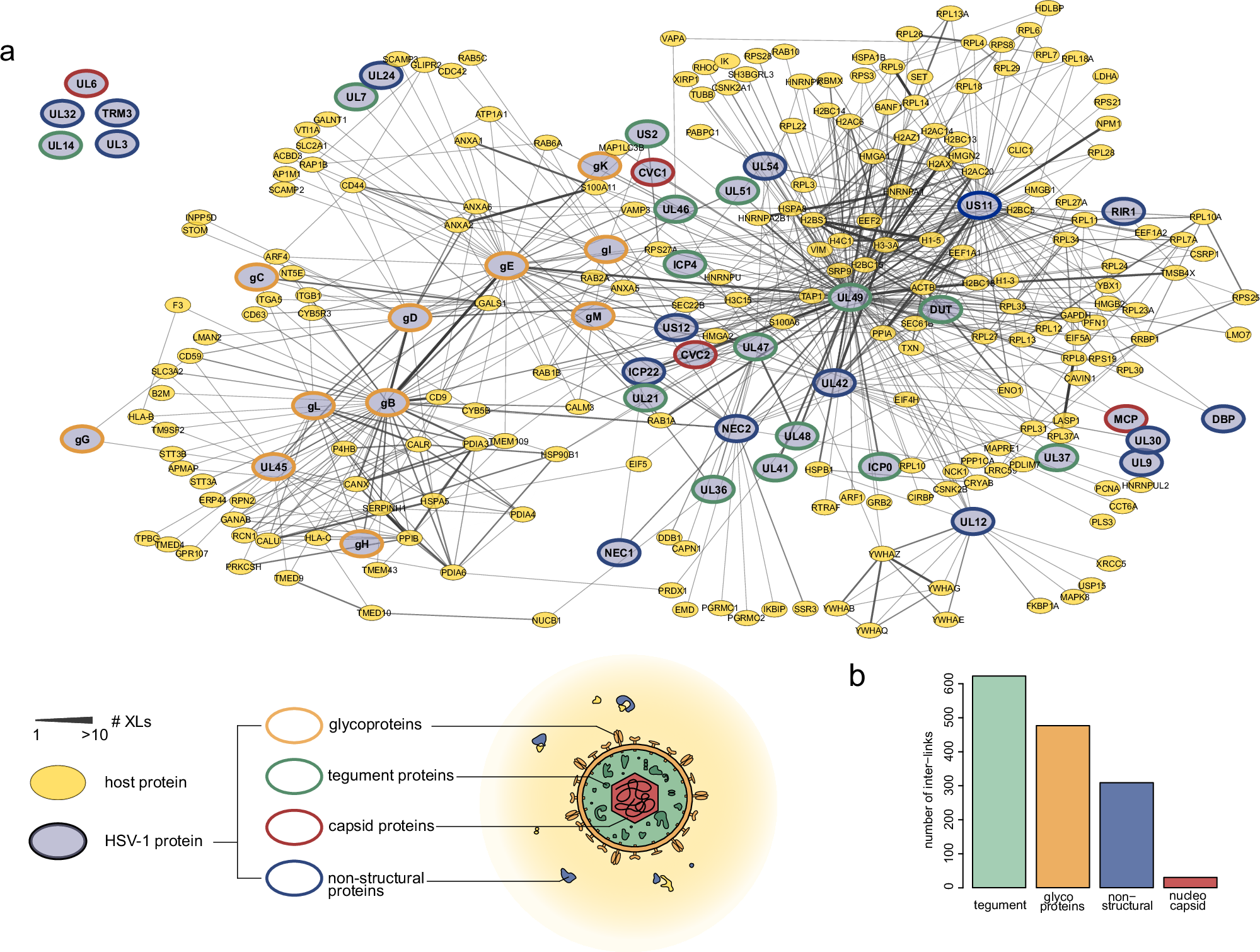

a Virus-centric PPI network of HSV-1 infected cells. Host proteins (yellow) are only included when they are directly linked to viral proteins (blue). Data are filtered to 1 % separate cross-link FDR and reported at 1% inter-PPI FDR with 6194 cross-links and 254 proteins. Edge width scales with the number of identified cross-links between the two proteins. The outline color of the nodes indicates the different classes of viral proteins (glycoproteins in orange, tegument in green, capsid in red, and non-structural proteins in blue). b Inter-link (cross-link in between two different proteins) coverage for viral proteins from different classes. Source data are provided.
