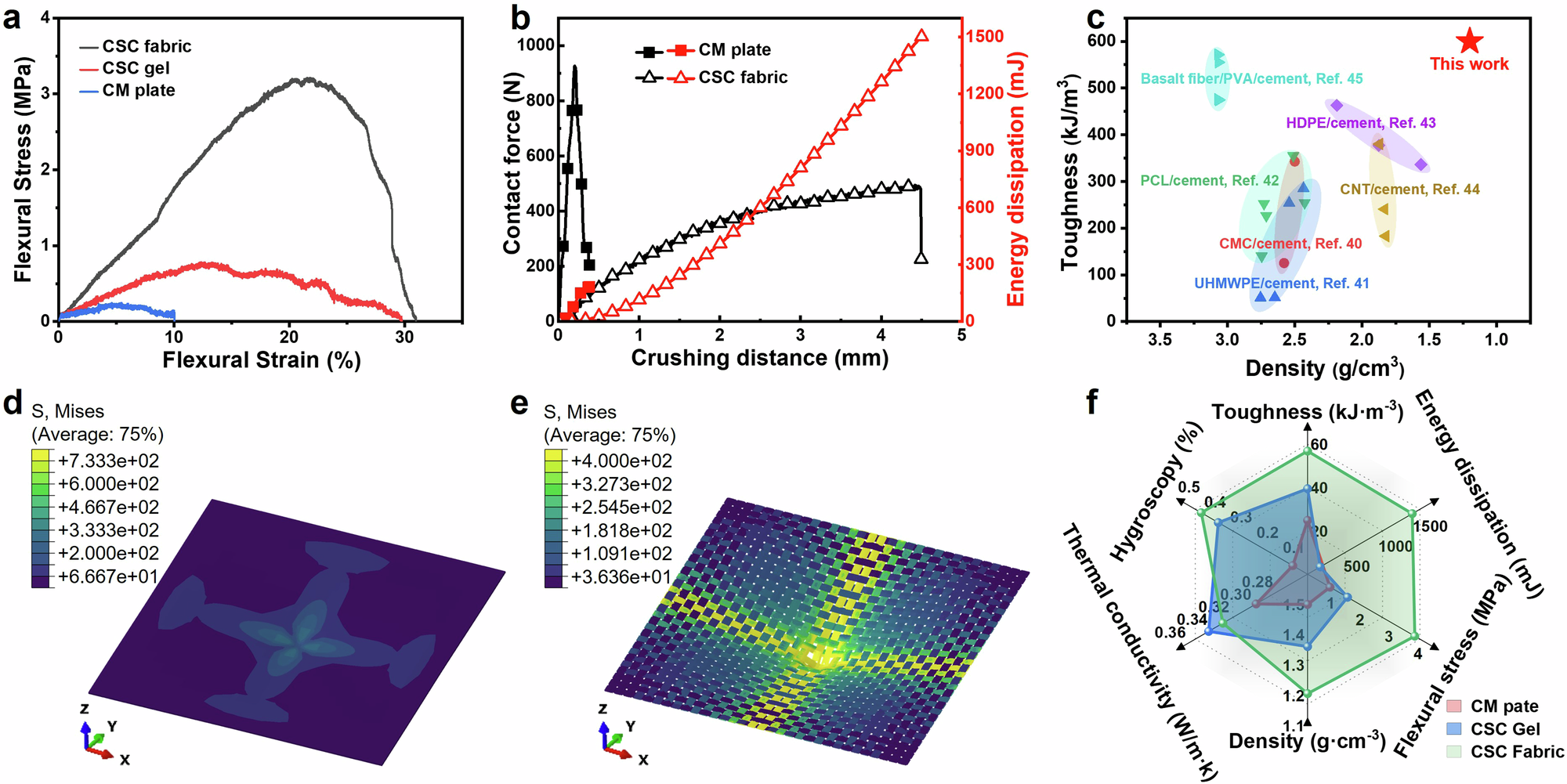

Fig. 6: Potential of as-woven cement-based fabrics in practice.
From: Flexible cement fibers with high toughness and water-activated setting behavior for construction
a Flexural stress-strain curves and b impact resistance of the cement plate, CSC gel and CSC fabric. c Toughness comparisons between the as-woven cement fabrics and other cement-based composite materials40,41,42,43,44,45. Numerical simulation of stress state under impact of d CSC gel and e CSC fabric. f Comparing multi functions of as-woven fabrics to those of cement plate and CSC gel. Source data are provided as a Source Data file.
