Fig. 2: The structure of CFTR/(R)-BPO-27 complex.
From: Structure of CFTR bound to (R)-BPO-27 unveils a pore-blockage mechanism

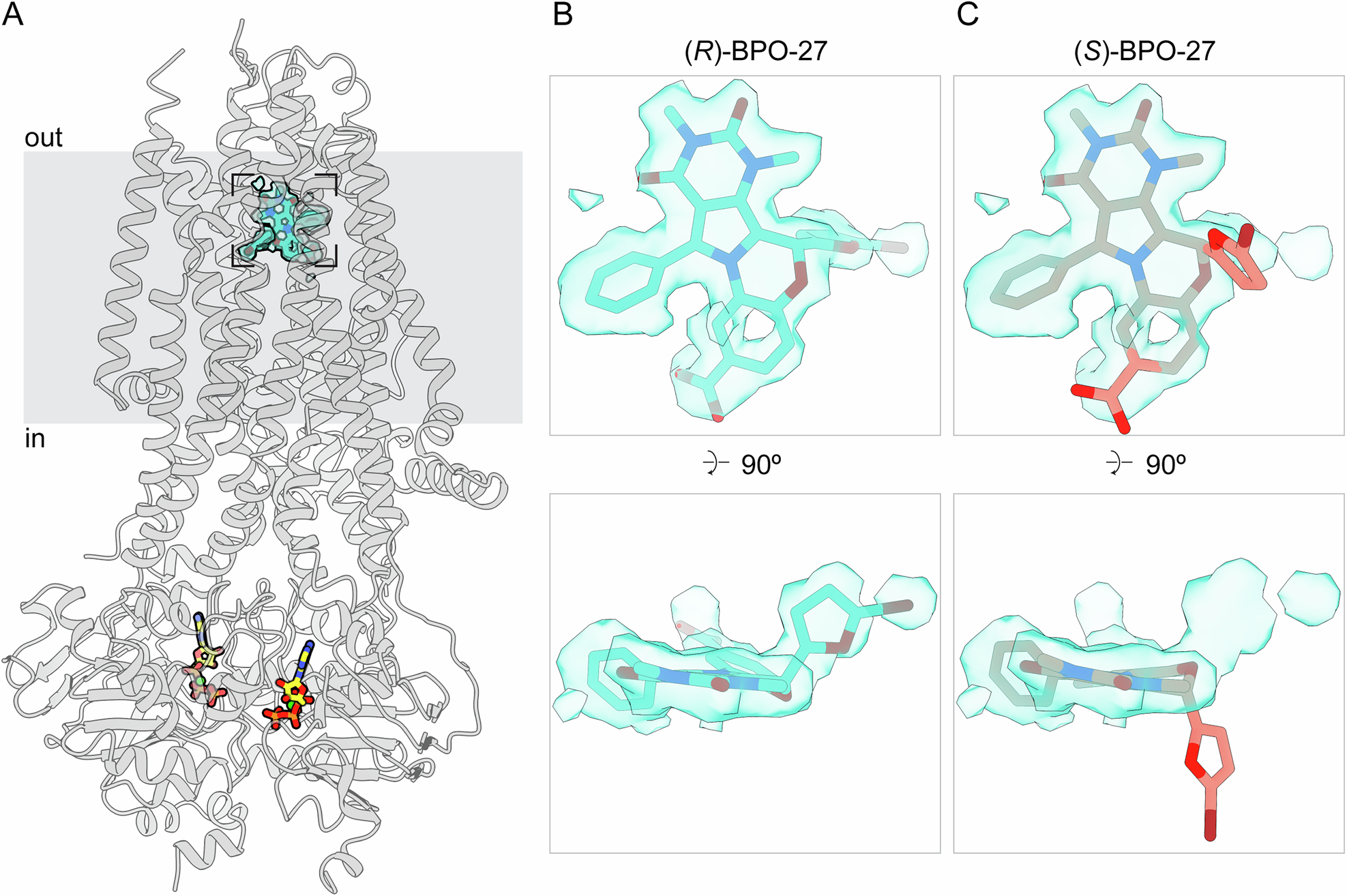

A The overall structure. (R)-BPO-27 is shown in teal surrounded by cryo-EM density. ATP is shown as yellow stick models. B Stick model of (R)-BPO-27 surrounded by cryo-EM density. Two views are shown. C The (S)-enantiomer does not fit into the cryo-EM density. The protruding 5-bromofuran and carboxylate groups are shown in red. Two views are shown.
