Fig. 3: Experimental (exp) and simulated (sim) velocity mapped images for ND3(\({1}_{1}^{-}\to {1}_{1}^{+}\))-H2 scattering at several collision energies.

From: Imaging scattering resonances in low-energy inelastic ND3-H2 collisions

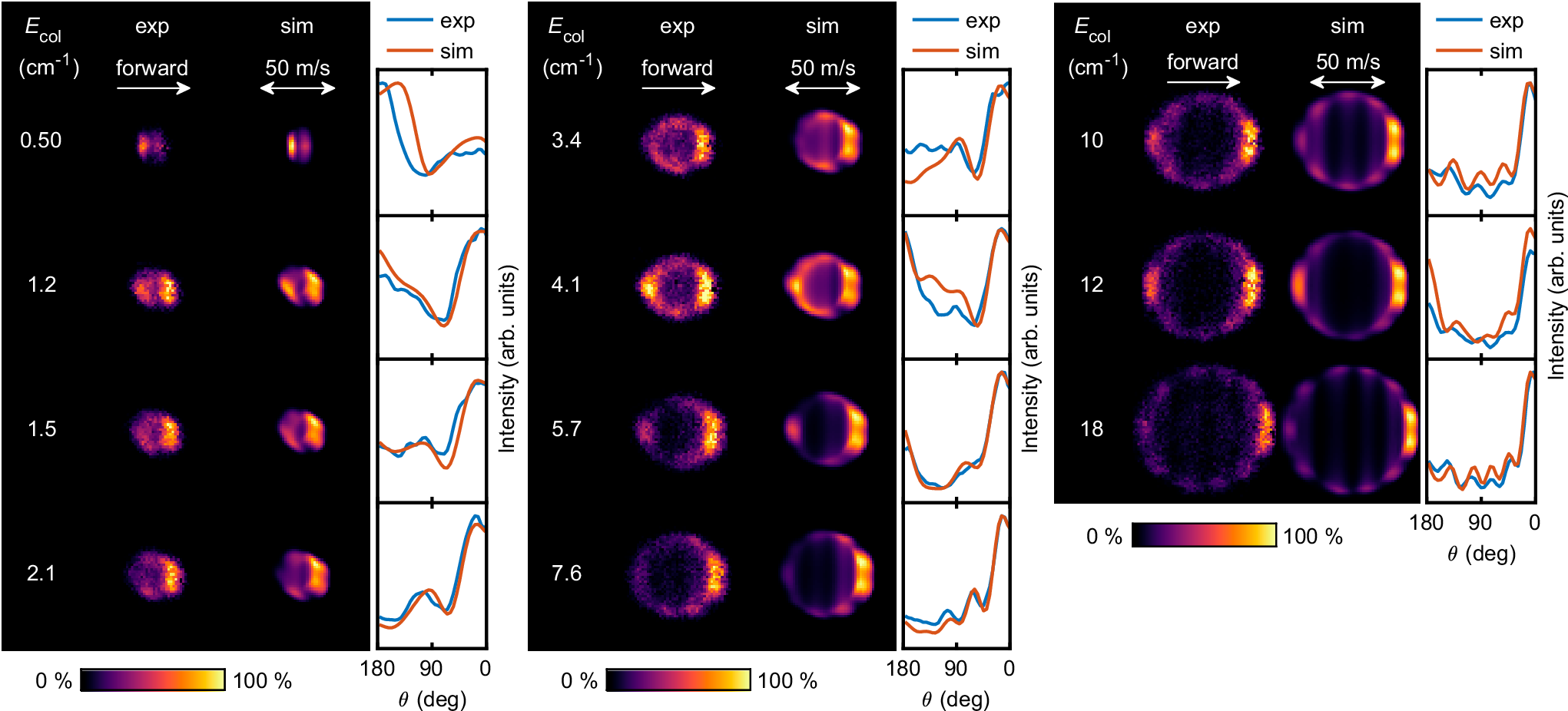

Fig. 3: Experimental (exp) and simulated (sim) velocity mapped images for ND3( $${1}_{1}^{-}\to {1}_{1}^{+}$$ 1 1 − → 1 1 + )-H2 scattering at several collision energies.The alternative text for this image may have been generated using AI.

The simulated images were generated using the calculated DCSs based on the CCSD(T)+ET(Q) PES, as shown in Fig. 2b. They are oriented such that the forward direction faces right. Each image pair was normalized by their integrated intensity. The angular distributions extracted from the images are shown for every collision energy to the right of every image pair. Source data are provided as a Source Data file.
