Fig. 6: Physical properties of compound 3.

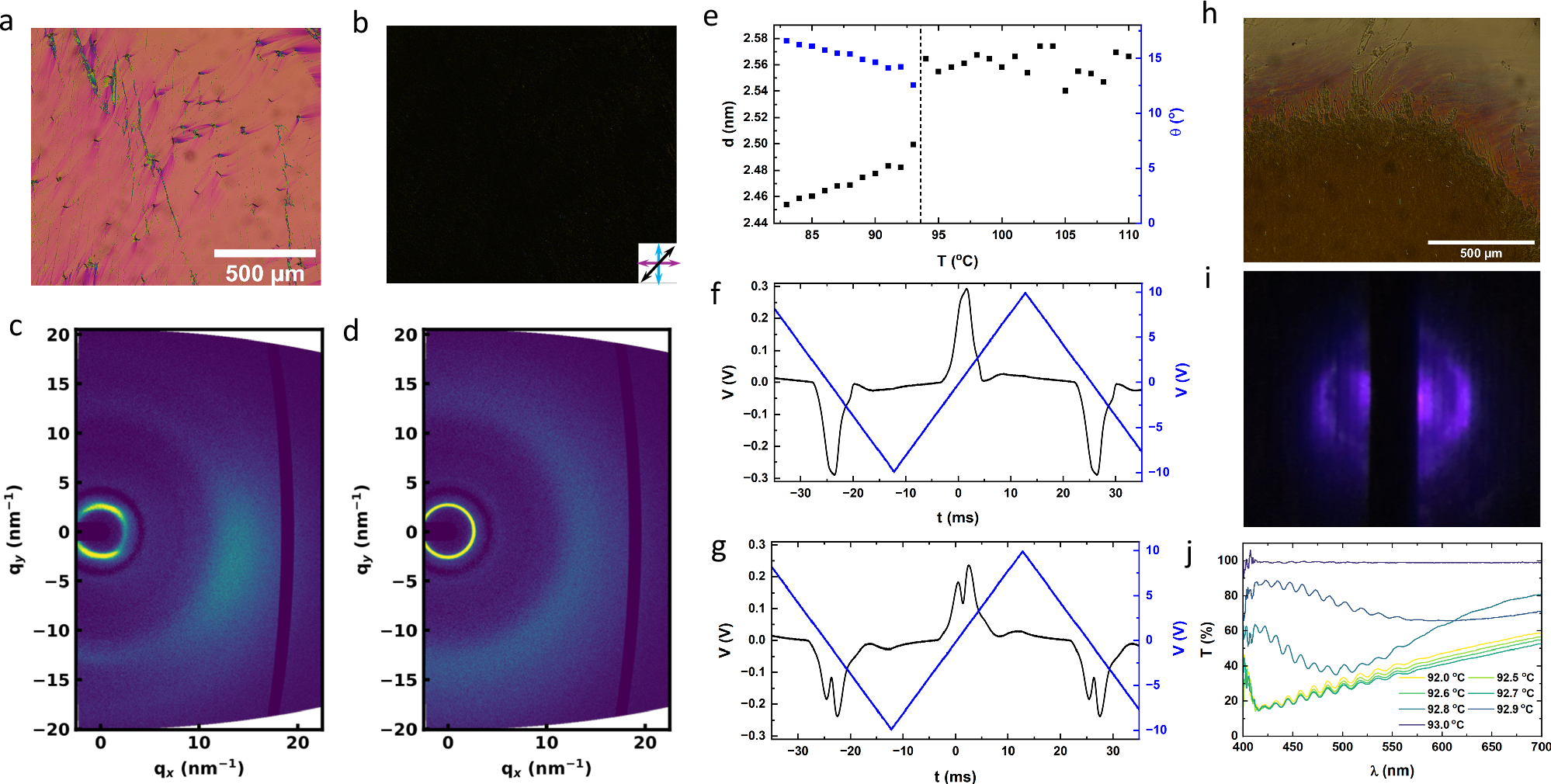

From: Ferri- and ferro-electric switching in spontaneously chiral polar liquid crystals
